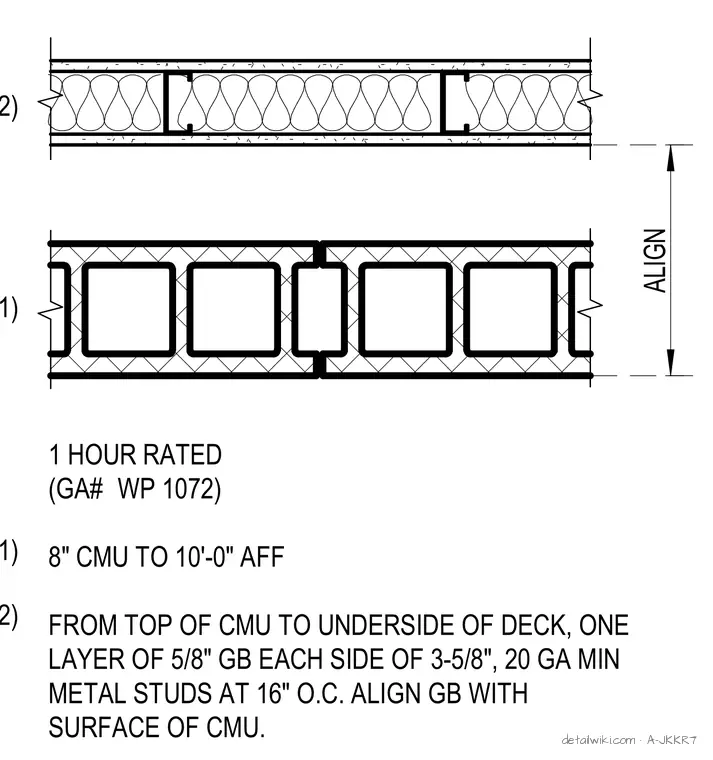

This one-hour rated assembly transitions from an eight-inch concrete masonry unit wall at ten feet above finished floor to a metal stud partition extending to the underside of the deck. The framing consists of three and five-eighths inch, twenty-gauge minimum metal studs spaced at sixteen inches on center. Each side of the metal framing receives one layer of five-eighths inch gypsum board. The gypsum board is aligned flush with the surface of the concrete masonry unit wall below.
(2) (1) ALIGN 1 HOUR RATED (GA# WP 1072) 8" CMU TO 10'-0" AFF FROM TOP OF CMU TO UNDERSIDE OF DECK, ONE LAYER OF 5/8" GB EACH SIDE OF 3-5/8", 20 GA MIN METAL STUDS AT 16" O.C. ALIGN GB WITH SURFACE OF CMU. (1) (2)
