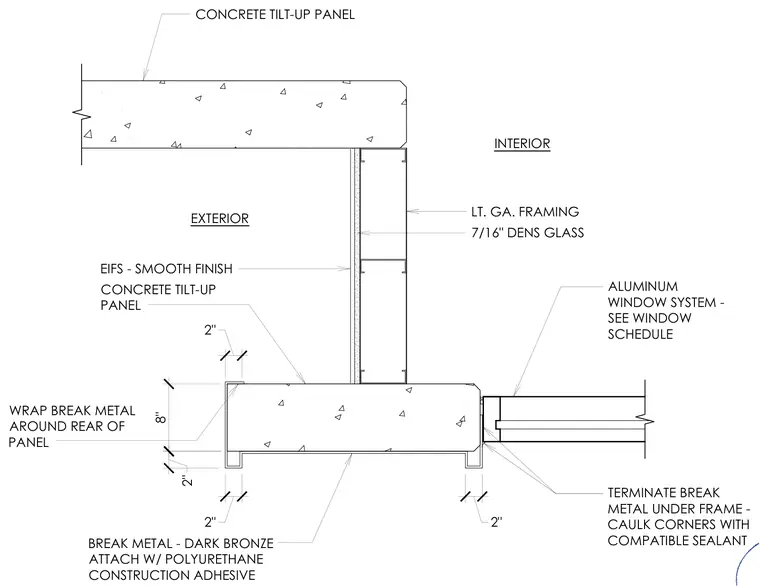

An aluminum window system connects to a concrete tilt-up wall panel with a smooth EIFS finish on the exterior. Dark bronze break metal wraps around the rear of the concrete panel and terminates under the window frame, secured with polyurethane construction adhesive. All corners are caulked with compatible sealant. Interior light gauge metal framing with seven-sixteenths-inch DensGlass completes the wall assembly adjacent to the opening.
CONCRETE TILT-UP PANEL CONCRETE TILT-UP PANEL LT. GA. FRAMING 7/16" DENS GLASS ALUMINUM WINDOW SYSTEM - SEE WINDOW SCHEDULE 2" 2" 2" 8" EIFS - SMOOTH FINISH BREAK METAL - DARK BRONZE ATTACH W/ POLYURETHANE CONSTRUCTION ADHESIVE 2" WRAP BREAK METAL AROUND REAR OF PANEL TERMINATE BREAK METAL UNDER FRAME - CAULK CORNERS WITH COMPATIBLE SEALANT INTERIOR EXTERIOR
