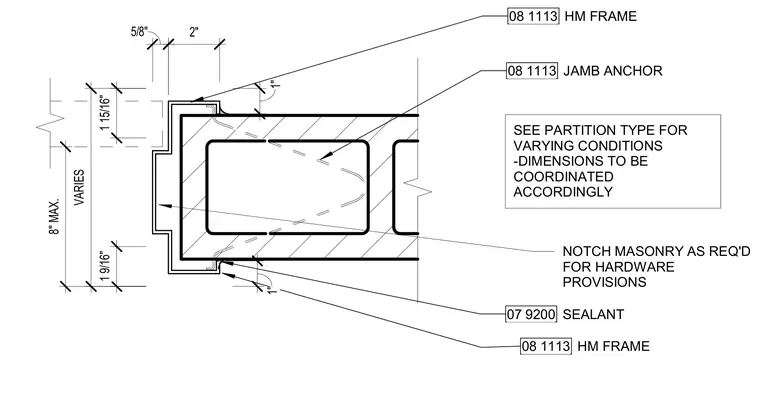

A hollow metal frame is set within a concrete masonry unit wall with masonry notched as required for hardware provisions. Jamb anchors secure the frame to the masonry cores, spaced at a maximum of 8 inches. Sealant joints are detailed at both frame returns against the masonry face. Dimensions show a 2-inch frame face with 5/8-inch returns and specific offsets of 1-15/16 inches and 1-9/16 inches.
2" 5/8" 1 15/16" 1 9/16" SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY 08 1113 HM FRAME NOTCH MASONRY AS REQ'D FOR HARDWARE PROVISIONS 07 9200 SEALANT 1" 1" 08 1113 HM FRAME VARIES 8" MAX. 08 1113 JAMB ANCHOR
