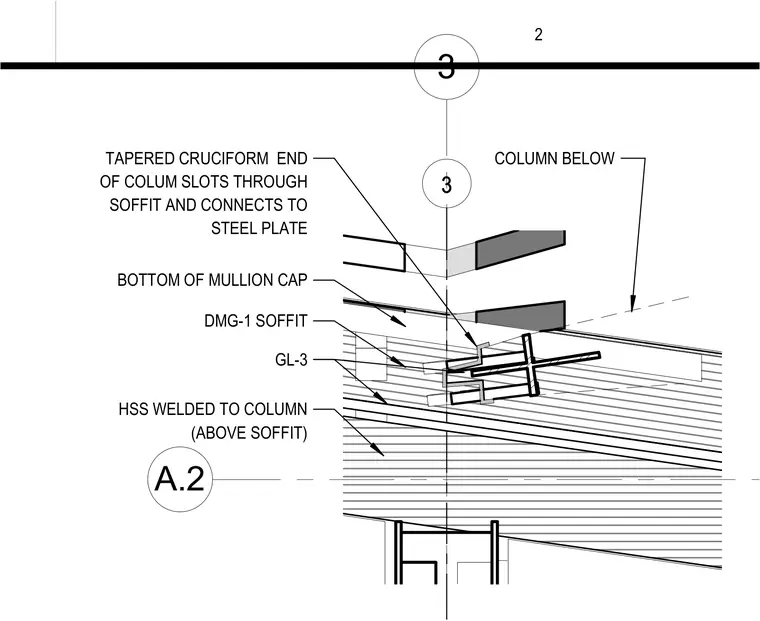

A tapered cruciform end of a column slots through the DMG-1 soffit and connects to a steel plate. A hollow structural section is welded to the column above the soffit. The assembly meets the bottom of the mullion cap and GL-3 framing.
3 TAPERED CRUCIFORM END OF COLUM SLOTS THROUGH SOFFIT AND CONNECTS TO STEEL PLATE HSS WELDED TO COLUMN (ABOVE SOFFIT) DMG-1 SOFFIT GL-3 COLUMN BELOW BOTTOM OF MULLION CAP 3 A.2 2
