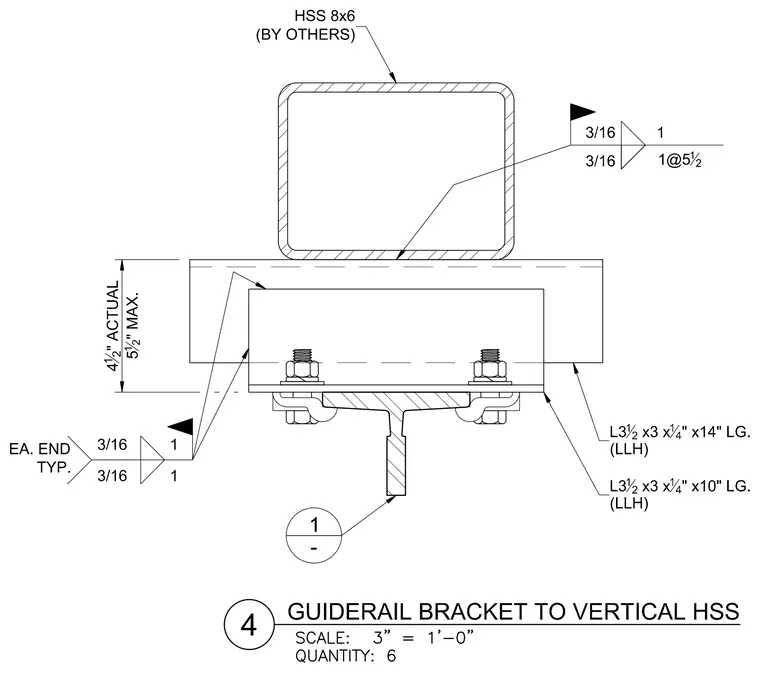

A guiderail bracket connects to an HSS 8x6 structural steel tube provided by others. The connection utilizes L3 1/2 x 3 x 1/4 inch long angles with specific lengths of 14 inches and 10 inches designated as LLH. Fillet welds of 3/16 inch size secure the assembly with typical applications at each end. Dimensions specify a 4 1/2 inch actual dimension with a 5 1/2 inch maximum clearance.
