Architectural · A-JK5Z2

Rated Gypsum Board Partition Intersection at Concrete Wall

Materials

Elements

About this detail

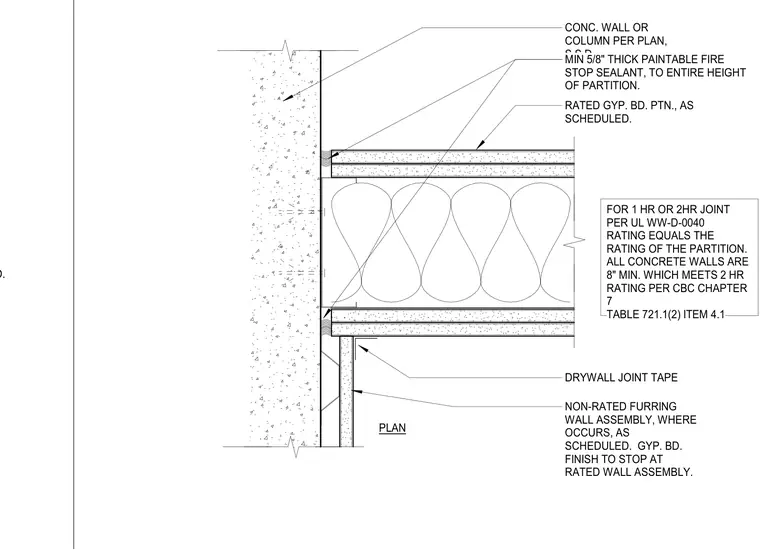

A rated gypsum board partition terminates against a concrete wall or column sized per plan. A minimum five-eighths-inch thick paintable fire stop sealant applies to the entire height of the partition at the joint. The partition assembly matches the required one-hour or two-hour fire rating per Underwriters Laboratories system UL WW-D-0040. A non-rated furring wall assembly meets the rated wall assembly where indicated, with gypsum board finish terminating at the rated boundary and finished with drywall joint tape.
