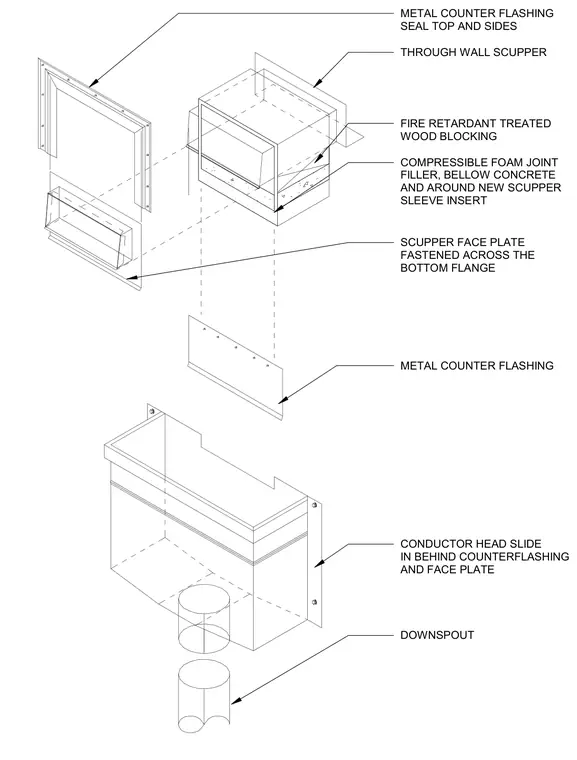

A through-wall scupper sleeve is embedded within a concrete wall opening surrounded by compressible foam joint filler and fire-retardant treated wood blocking. Metal counterflashing seals the top and sides of the scupper opening, while a scupper face plate fastens across the bottom flange. A downspout conductor head slides in behind the counterflashing and face plate, connecting directly to the downspout below.
DOWNSPOUT CONDUCTOR HEAD SLIDE IN BEHIND COUNTERFLASHING AND FACE PLATE METAL COUNTER FLASHING COMPRESSIBLE FOAM JOINT FILLER, BELLOW CONCRETE AND AROUND NEW SCUPPER SLEEVE INSERT THROUGH WALL SCUPPER METAL COUNTER FLASHING SEAL TOP AND SIDES SCUPPER FACE PLATE FASTENED ACROSS THE BOTTOM FLANGE FIRE RETARDANT TREATED WOOD BLOCKING
