Architectural · A-JK3FQ

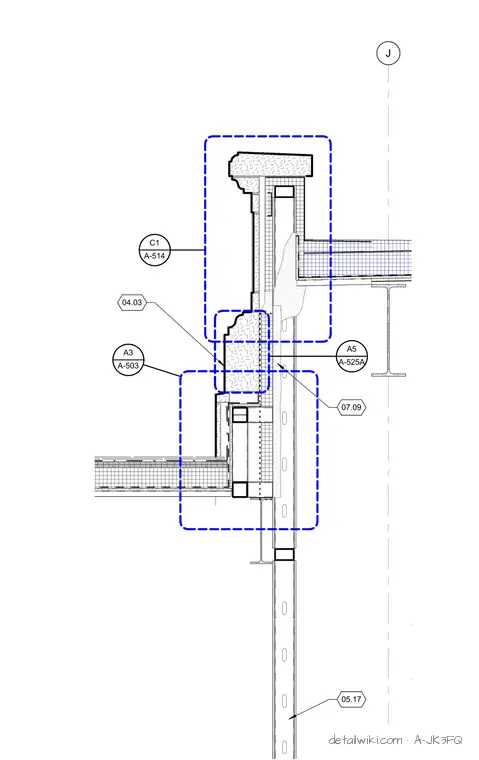

Wall Section

Scale: SCALE: 3/4" = 1'-0"
Units: imperial
Sheet: A-326
Discipline: Architectural

Elements

Walls

Text on the drawing

J A-503 A3 A-514 C1 05.17 03.02 04.03 A-525A A5 07.09
