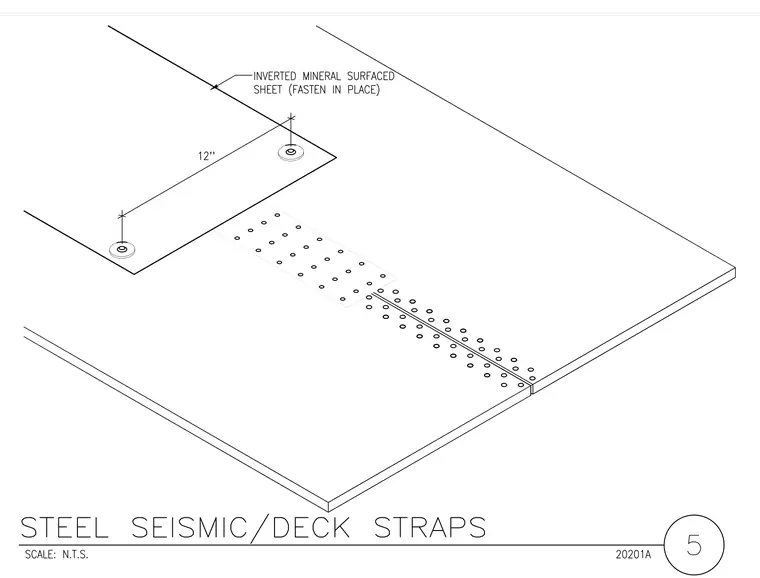

An inverted mineral surfaced sheet is fastened in place over the assembly with a 12-inch spacing between fasteners. Structural steel straps span across the deck joint and are secured with mechanical fasteners on both sides of the junction.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
