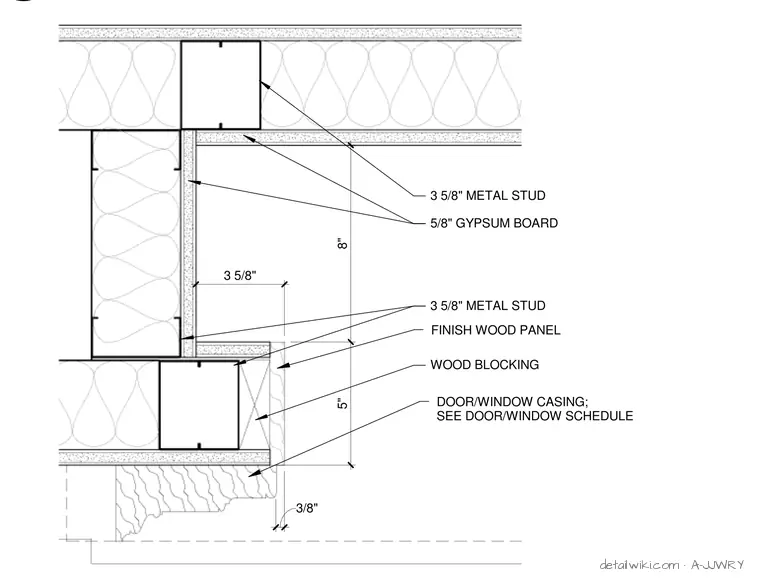

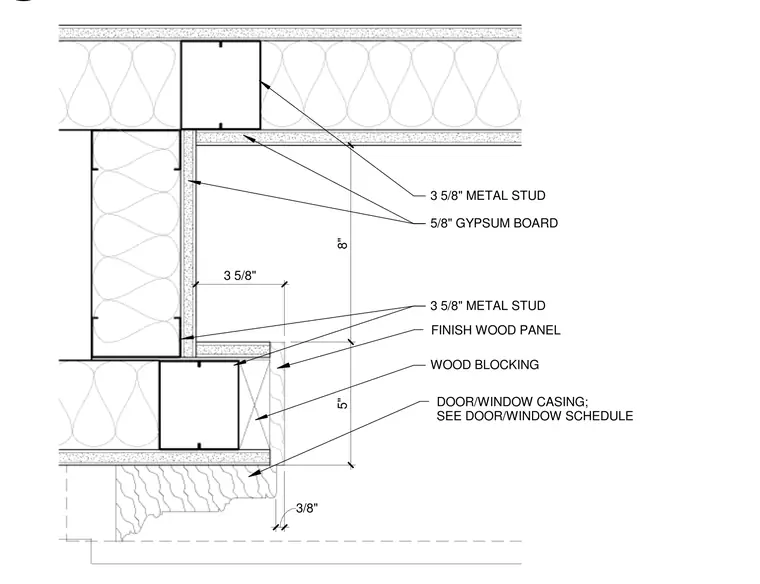

This interior wall niche jamb is framed with three and five-eighths inch metal studs faced with five-eighths inch gypsum board layers. Wood blocking provides structural backing for the finish wood panel lining the niche return. A door or window casing is installed at the opening per the finish schedule.
3 5/8" METAL STUD 5/8" GYPSUM BOARD 5/8" GYPSUM BOARD 3 5/8" METAL STUD FINISH WOOD PANEL WOOD BLOCKING 3 5/8" METAL STUD DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 8" 5" 3 5/8" 3/8"
