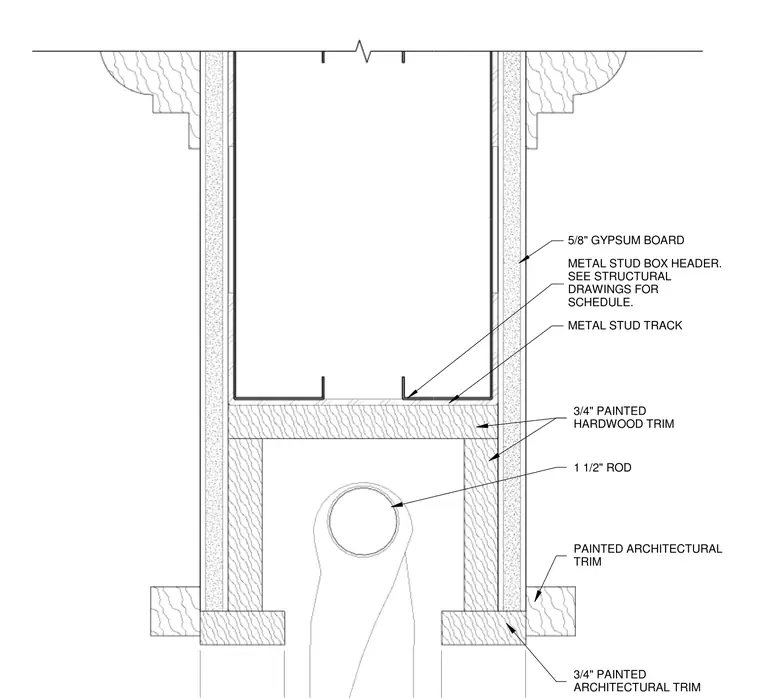

A-JJVX9 — Name Booth Detail

Architectural · A-JJVX9

Name Booth Detail

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-586
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Beams Millwork / Casework Partitions

Text on the drawing

METAL STUD BOX HEADER. SEE STRUCTURAL DRAWINGS FOR SCHEDULE. 1 1/2" ROD 3/4" PAINTED ARCHITECTURAL TRIM PAINTED ARCHITECTURAL TRIM 3/4" PAINTED HARDWOOD TRIM METAL STUD TRACK 5/8" GYPSUM BOARD
