Architectural · A-JJB24

Roof Penetrations Spacing and Curb Flashing Details

Materials

Steel Timber / Wood Metal (misc.)Membrane / Roofing

Elements

Walls Roofs Parapets Waterproofing / Flashing Insulation Drainage Site / Paving Roof / Floor Openings

About this detail

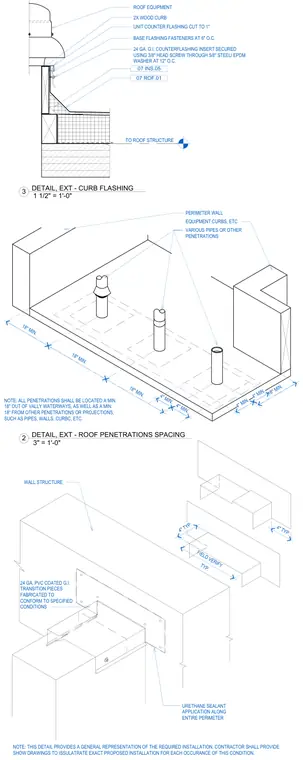

Spacing layout rules for roof penetrations and equipment curbs require an 18 inch minimum clearance from valley waterways, walls, and other pipes, alongside a 4 inch minimum clearance between specific elements. The curb flashing assembly features a 2x wood curb supporting roof equipment, with unit counterflashing cut to 1 inch and base flashing secured with fasteners at 6 inches on center. A twenty-four gauge galvanized iron counterflashing insert is attached to the roof structure using three-eighths inch head screws through five-eighths inch steel and EPDM washers at 12 inches on center. Twenty-four gauge PVC-coated galvanized iron transition pieces are fabricated to match specified conditions and sealed with a urethane sealant application along the entire perimeter. The contractor must provide shop drawings to illustrate the exact proposed installation for each occurrence of this condition.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
