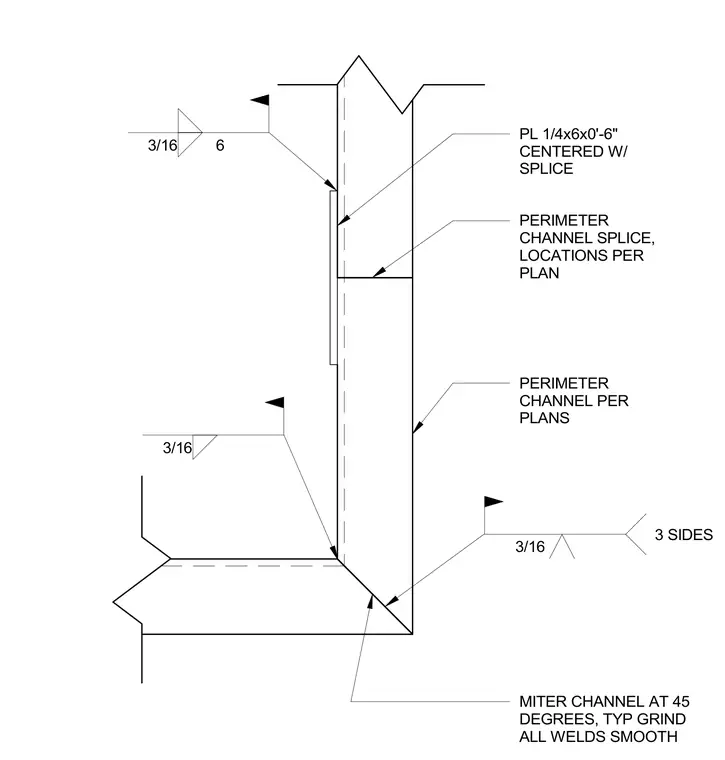

Perimeter steel channels are mitered at a 45-degree angle at the corner and joined with typical welds ground smooth. A 1/4 inch by 6 inch by 0 feet 6 inch steel splice plate is centered across the perimeter channel splice located per plans. Welds are specified as 3/16 inch fillets applied on three sides.
MITER CHANNEL AT 45 DEGREES, TYP GRIND ALL WELDS SMOOTH PERIMETER CHANNEL PER PLANS 3/16 3 SIDES 3/16 3/16 6 PERIMETER CHANNEL SPLICE, LOCATIONS PER PLAN PL 1/4x6x0'-6" CENTERED W/ SPLICE
