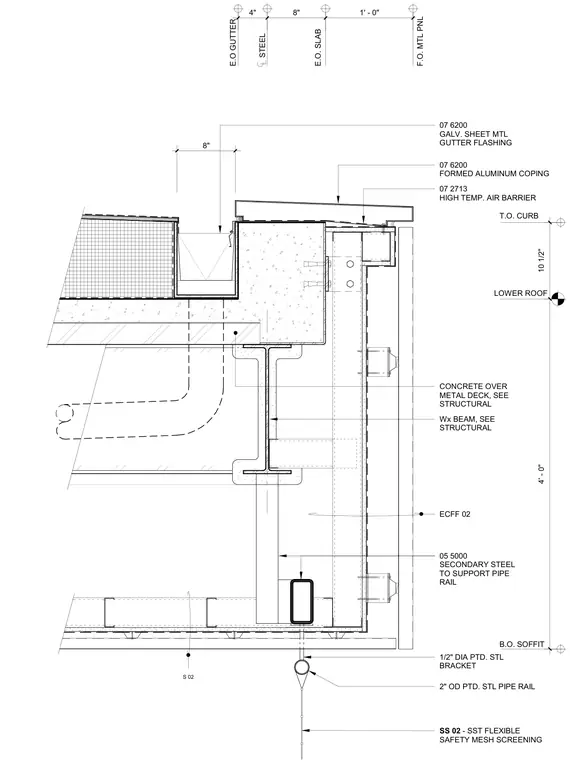

A low roof edge and gutter assembly transitions to an exterior wall and safety screen. The concrete slab over metal deck is supported by a wide-flange steel beam, featuring a top curb and an integrated galvanized sheet metal gutter flashing with an eight-inch width. A formed aluminum coping caps the parapet wall, protected below by a high-temperature air barrier. On the exterior face, metal panels are secured with secondary steel framing that also supports a painted steel pipe rail on a half-inch diameter painted steel bracket. Below the rail, a stainless steel flexible safety mesh screening drops downward.
LOWER ROOF Wx BEAM, SEE STRUCTURAL CONCRETE OVER METAL DECK, SEE STRUCTURAL 07 2713 HIGH TEMP. AIR BARRIER 4' - 0" 10 1/2" B.O. SOFFIT S 02 E.O. SLAB E.O GUTTER 4" 8" 1' - 0" T.O. CURB F.O. MTL PNL 07 6200 FORMED ALUMINUM COPING ECFF 02 SS 02 - SST FLEXIBLE SAFETY MESH SCREENING 2" OD PTD. STL PIPE RAIL 1/2" DIA PTD. STL BRACKET 8" 07 6200 GALV. SHEET MTL GUTTER FLASHING STEEL 05 5000 SECONDARY STEEL TO SUPPORT PIPE RAIL
