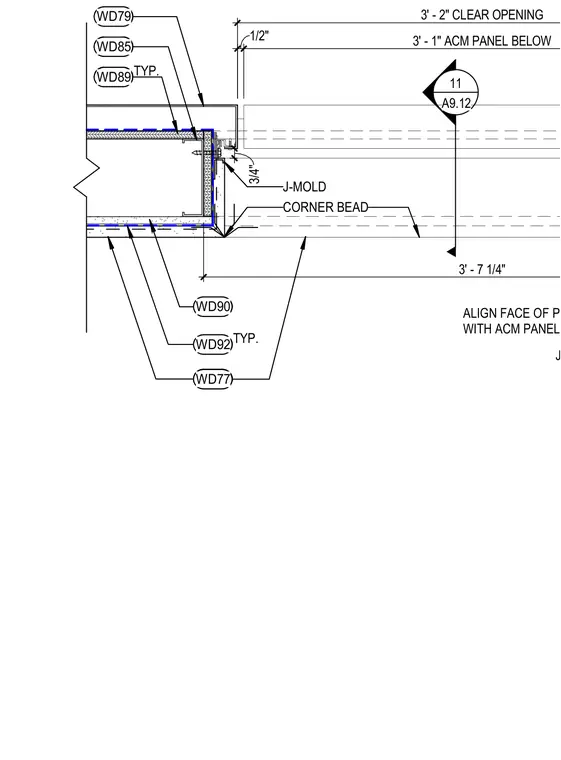

This plan detail shows a column wrap integrating a plaster finish with a corner bead and J-mold transition adjacent to an ACM panel. The face of the plaster aligns with the ACM panel joint as indicated by dimensional callouts. Framing and finish layers are identified by specific detail tags including WD77, WD90, WD92, WD89, WD85, and WD79.
3' - 7 1/4" 3' - 2" CLEAR OPENING 1/2" 3' - 1" ACM PANEL BELOW WD77 TYP. WD92 WD90 TYP. WD89 WD85 WD79 WD77 ALIGN FACE OF PLASTER WITH ACM PANEL JOINT 3/4" J-MOLD CORNER BEAD J-MOLD 11 A9.12
