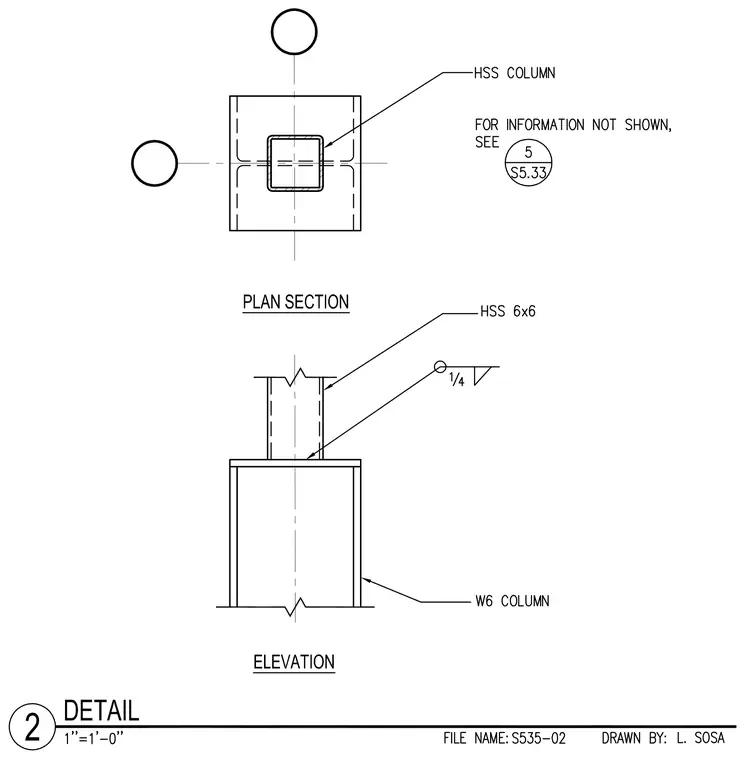

An HSS 6x6 hollow structural section column bears centrally on a W6 column with a top plate. A quarter-inch fillet weld secures the hollow structural section column base to the supporting member around the perimeter. A plan section details the concentric alignment of the smaller HSS column over the W6 column profile. Additional information is referenced on structural sheet S5.33 detail 5.
