A-JHWK8 — Cantilevered Slab Edge at Branch - West

Architectural · A-JHWK8

Cantilevered Slab Edge at Branch - West

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A7.01
Discipline: Architectural

Materials

Concrete Metal (misc.)

Elements

Drainage Expansion / Control Joints Floors / Slabs Insulation Site / Paving Storefronts Walls Waterproofing / Flashing

Text on the drawing

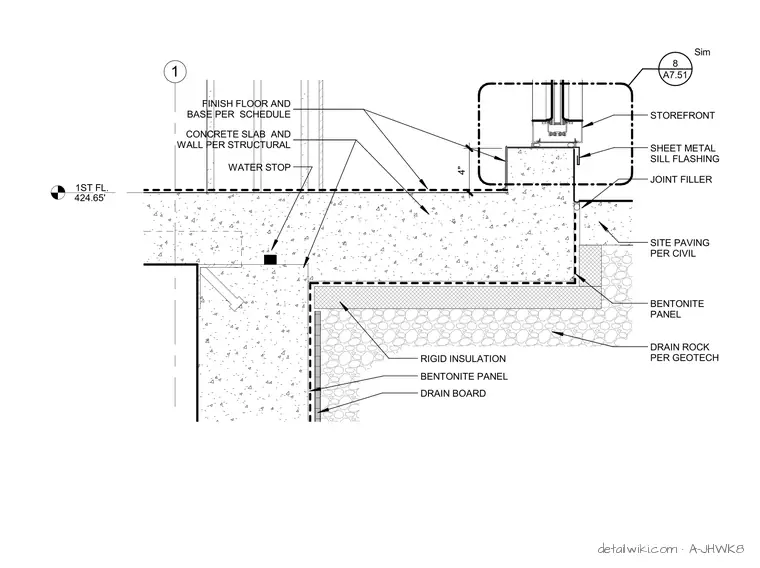

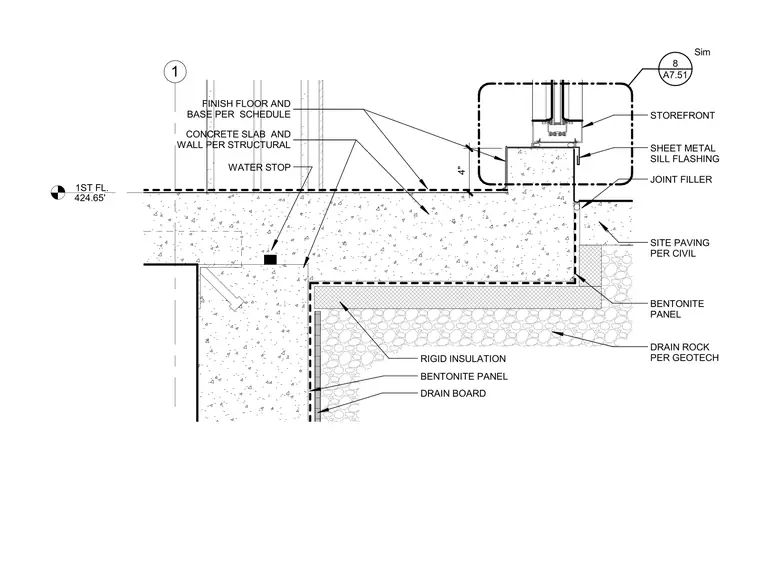

1ST FL. 424.65' 1 FINISH FLOOR AND BASE PER SCHEDULE STOREFRONT SHEET METAL SILL FLASHING RIGID INSULATION DRAIN BOARD BENTONITE PANEL CONCRETE SLAB AND WALL PER STRUCTURAL WATER STOP JOINT FILLER SITE PAVING PER CIVIL 4" BENTONITE PANEL DRAIN ROCK PER GEOTECH A7.51 8 Sim

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
