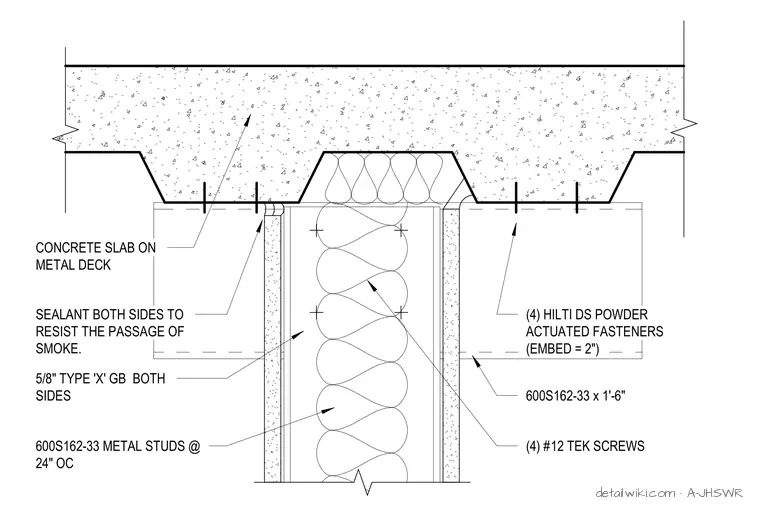

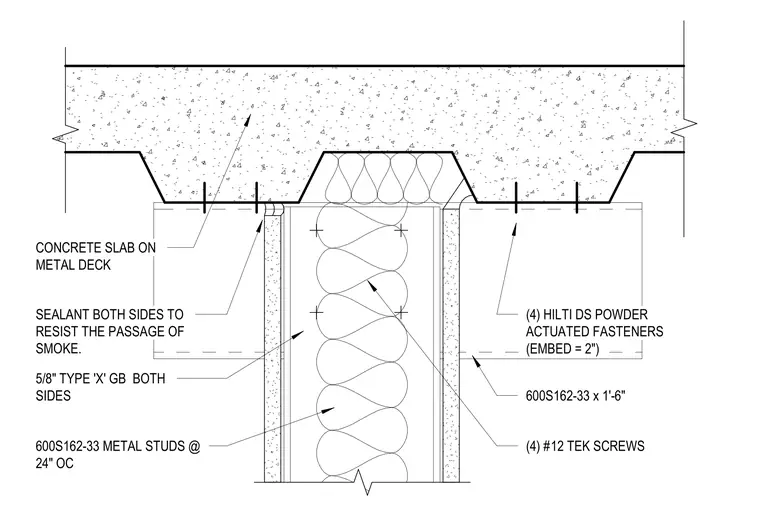

A cold-formed steel partition abuts the underside of a concrete slab on metal deck, utilizing six hundred s one sixty dash thirty-three metal studs spaced at twenty-four inches on center with five-eighths inch Type X gypsum board on both sides. The wall top track is secured with four Hilti DS powder-actuated fasteners with a two-inch embedment. Four number twelve TEK screws connect the framing components at the head of the wall. Joint sealant is applied on both sides of the partition to resist the passage of smoke.
(4) #12 TEK SCREWS CONCRETE SLAB ON METAL DECK 600S162-33 METAL STUDS @ 24" OC 5/8" TYPE 'X' GB BOTH SIDES SEALANT BOTH SIDES TO RESIST THE PASSAGE OF SMOKE. 600S162-33 x 1'-6" (4) HILTI DS POWDER ACTUATED FASTENERS (EMBED = 2")
