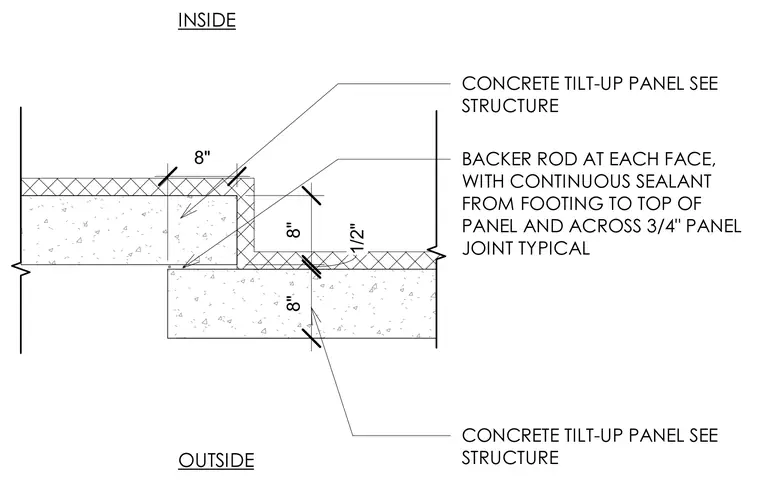

Adjacent concrete tilt-up panels meet at a stepped vertical joint featuring an eight-inch thickness transition. A continuous backer rod is installed at each face within the three-quarter-inch panel joint. Continuous sealant spans from the footing to the top of the panel on both the interior and exterior sides.
CONCRETE TILT-UP PANEL SEE STRUCTURE CONCRETE TILT-UP PANEL SEE STRUCTURE INSIDE OUTSIDE BACKER ROD AT EACH FACE, WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL 8" 1/2" 8" 8"
