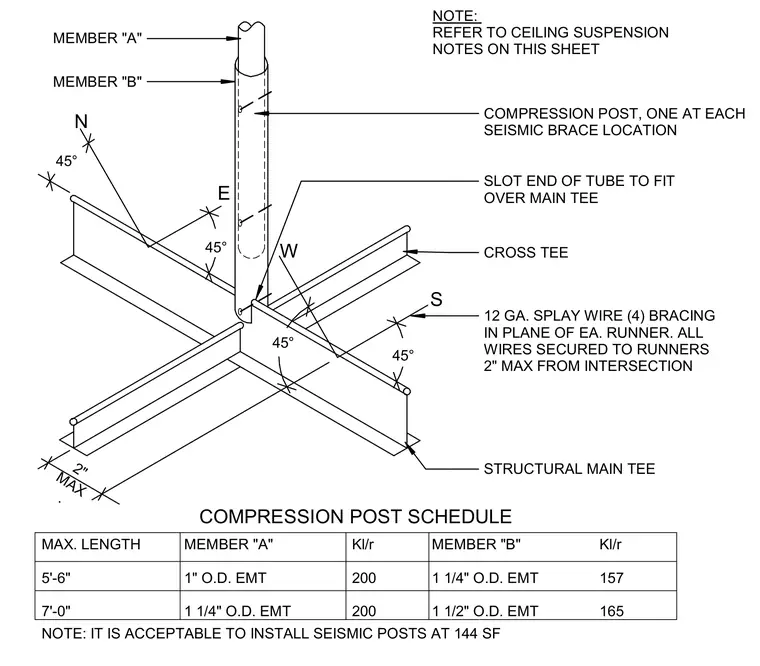

A hollow structural electrical metallic tubing compression post sits centered on a structural main tee intersection with cross tees, positioned with a slotted end fitting directly over the tee flange. Four twelve-gauge splay wires provide bracing in the plane of each runner, secured to the runners within a maximum distance of two inches from the intersection. Member sizes are selected based on length limits, using either one-inch or one-and-one-quarter-inch outside diameter electrical metallic tubing for member "A" and one-and-one-quarter-inch or one-and-one-half-inch outside diameter electrical metallic tubing for member "B" according to the accompanying compression post schedule. Seismic posts are installed at a maximum spacing of one hundred forty-four square feet.
NOTE: REFER TO CEILING SUSPENSION NOTES ON THIS SHEET COMPRESSION POST, ONE AT EACH SEISMIC BRACE LOCATION SLOT END OF TUBE TO FIT OVER MAIN TEE CROSS TEE 12 GA. SPLAY WIRE (4) BRACING IN PLANE OF EA. RUNNER. ALL WIRES SECURED TO RUNNERS 2" MAX FROM INTERSECTION STRUCTURAL MAIN TEE MAX. LENGTH 5'-6" 7'-0" MEMBER "A" 1" O.D. EMT 1 1/4" O.D. EMT Kl/r 200 200 MEMBER "B" 1 1/4" O.D. EMT 1 1/2" O.D. EMT Kl/r 157 165 NOTE: IT IS ACCEPTABLE TO INSTALL SEISMIC POSTS AT 144 SF COMPRESSION POST SCHEDULE MEMBER "A" MEMBER "B" 45° 45° 45° 45° 2" MAX . N E S W
