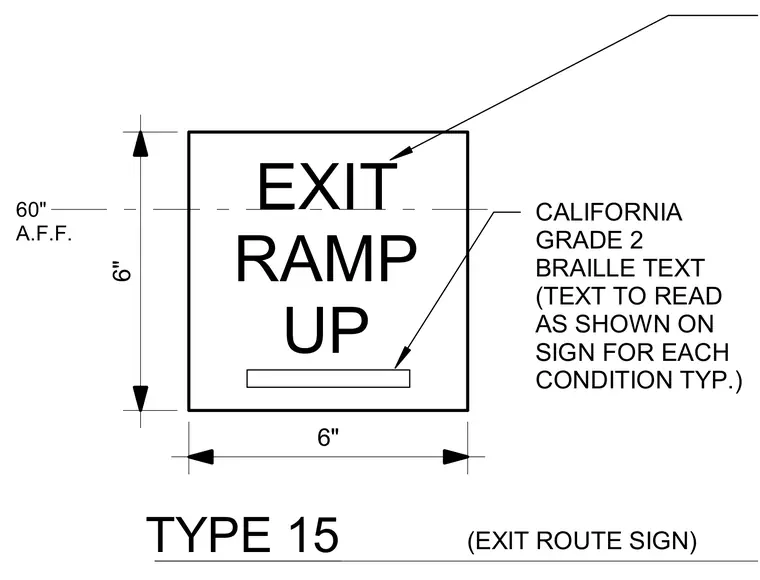

This type 15 exit route sign measures 6 inches wide by 6 inches high and includes California Grade 2 braille text. The sign is installed at a mounting height of 60 inches above finished floor.
TYPE 15 (EXIT ROUTE SIGN) EXIT RAMP UP 6" 6" CALIFORNIA GRADE 2 BRAILLE TEXT (TEXT TO READ AS SHOWN ON SIGN FOR EACH CONDITION TYP.) 60" A.F.F.
