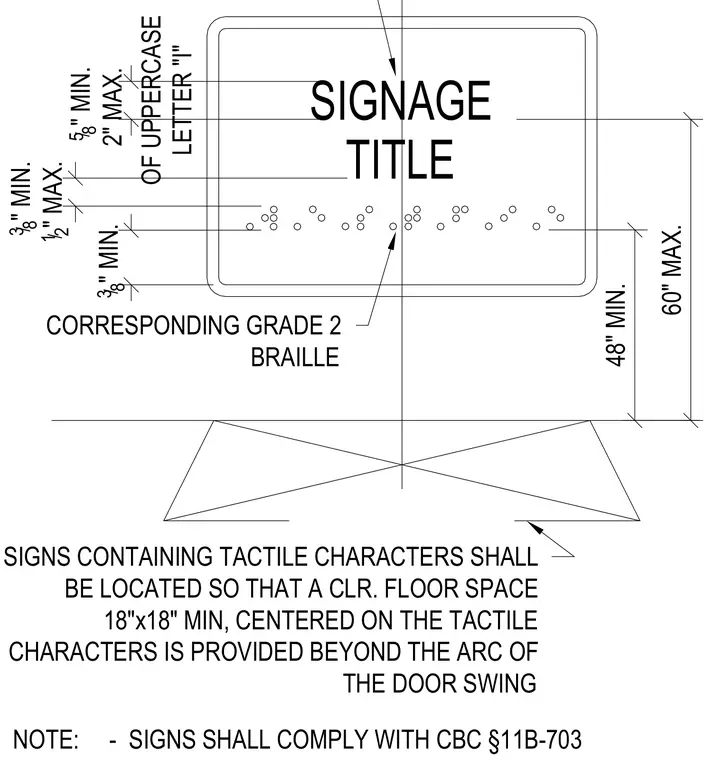

Tactile signage includes raised characters and corresponding Grade 2 Braille complying with California Building Code section 11B-703. Signs are positioned with a centerline height between forty-eight inches minimum and sixty inches maximum above the finished floor. The sign installation requires an eighteen inch by eighteen inch minimum clear floor space centered on the tactile characters located beyond the arc of the door swing. Character height ranges from five-eighths inch minimum to two inches maximum for uppercase letters, with specific stroke widths and spacing dimensions.
48" MIN. 60" MAX. CORRESPONDING GRADE 2 BRAILLE NOTE: - SIGNS SHALL COMPLY WITH CBC §11B-703 3/8 " MIN. 1/2 " MAX. 3/8 " MIN. 5/8 " MIN. 2" MAX. OF UPPERCASE LETTER "I" SIGNS CONTAINING TACTILE CHARACTERS SHALL BE LOCATED SO THAT A CLR. FLOOR SPACE 18"x18" MIN, CENTERED ON THE TACTILE CHARACTERS IS PROVIDED BEYOND THE ARC OF THE DOOR SWING SIGNAGE TITLE
