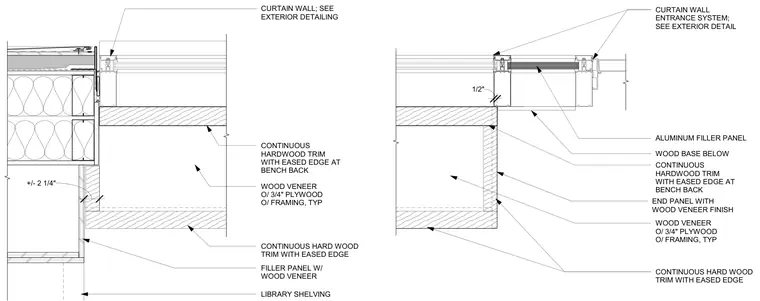

This plan detail shows a built-in library bench abutting a curtain wall entrance system. The bench is framed with three-quarter-inch plywood and finished with wood veneer over interior framing. Continuous hardwood trim with an eased edge details the bench back and perimeter edges. Aluminum filler panels and a wood base complete the intersection below the adjacent glazing.
1/2" CONTINUOUS HARD WOOD TRIM WITH EASED EDGE WOOD VENEER O/ 3/4" PLYWOOD O/ FRAMING, TYP CURTAIN WALL ENTRANCE SYSTEM; SEE EXTERIOR DETAIL CONTINUOUS HARDWOOD TRIM WITH EASED EDGE AT BENCH BACK ALUMINUM FILLER PANEL WOOD BASE BELOW END PANEL WITH WOOD VENEER FINISH CONTINUOUS HARD WOOD TRIM WITH EASED EDGE +/- 2 1/4" WOOD VENEER O/ 3/4" PLYWOOD O/ FRAMING, TYP CURTAIN WALL; SEE EXTERIOR DETAILING CONTINUOUS HARDWOOD TRIM WITH EASED EDGE AT BENCH BACK FILLER PANEL W/ WOOD VENEER LIBRARY SHELVING
