An insulated freezer or cooler door fits into a prefinished metal-clad high-density polyethylene frame set within an insulated metal panel wall. A foam-in-place insulation layer fills the pocket between the frame and the wall assembly. Full-perimeter sealant is applied to both sides of the frame junction for airtight containment. A heated gasket seal operates at 28 degrees Fahrenheit and below to prevent frost accumulation at the door interface. A prefinished metal rain hood extends three inches beyond the door opening on each side at exterior conditions, secured with sealant.

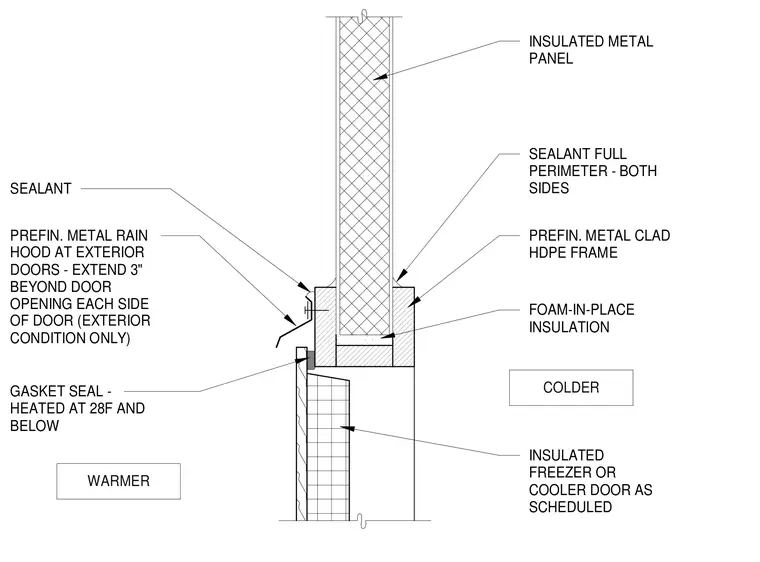

INSULATED FREEZER OR COOLER DOOR AS SCHEDULED PREFIN. METAL RAIN HOOD AT EXTERIOR DOORS - EXTEND 3" BEYOND DOOR OPENING EACH SIDE OF DOOR (EXTERIOR CONDITION ONLY) SEALANT INSULATED METAL PANEL GASKET SEAL - HEATED AT 28F AND BELOW FOAM-IN-PLACE INSULATION PREFIN. METAL CLAD HDPE FRAME SEALANT FULL PERIMETER - BOTH SIDES WARMER COLDER
