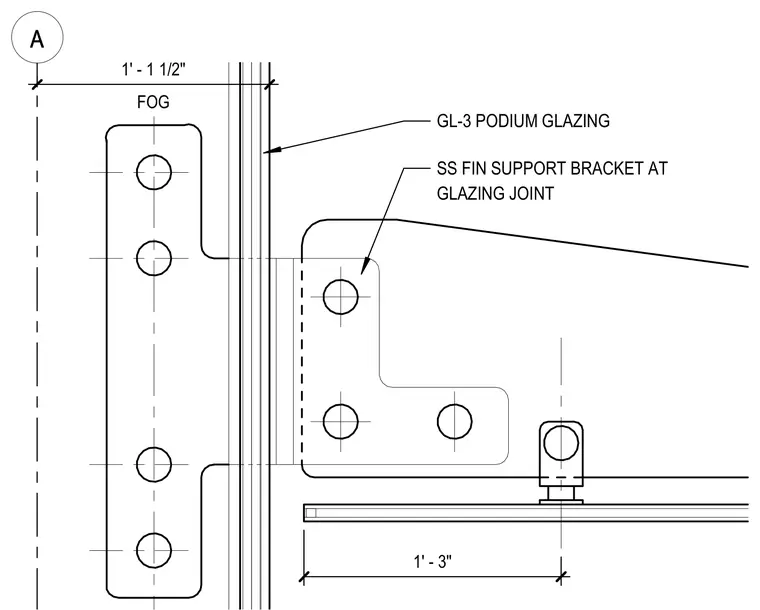

A stainless steel fin support bracket connects the glass fin to the supporting structure at the glazing joint. GL-3 podium glazing panels align adjacent to the support assembly with precise dimensional spacing from the face of glass. Fasteners secure the bracket plate through pre-drilled holes in the connection tabs.
A 1 ' - 3 " F O G 1 ' - 1 1 / 2 " GL-3 PODIUM GLAZING SS FIN SUPPORT BRACKET AT GLAZING JOINT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
