A sheet metal Z-metal end closure forms a watertight termination featuring a ten-degree slope and an end dam extending one-half inch above the assembly. The closure is secured with spot welds or rivets and soldered watertight along the seams. Dimensions include a three-inch vertical leg, a one-inch horizontal extension, and verify-in-field measurements for fitting.

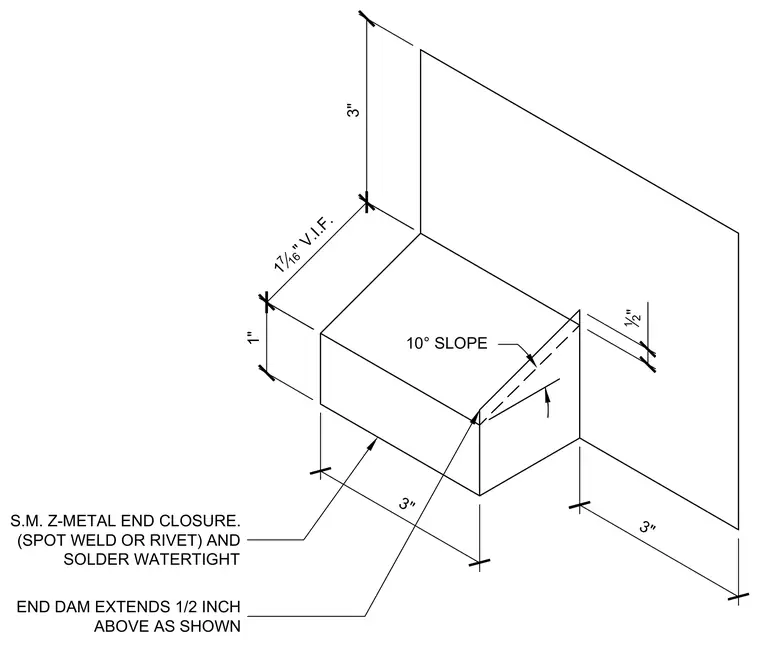

S.M. Z-METAL END CLOSURE. (SPOT WELD OR RIVET) AND SOLDER WATERTIGHT 10° SLOPE 3" 1" 3" 1 716 " V.I.F. END DAM EXTENDS 1/2 INCH ABOVE AS SHOWN 3" 12 "
