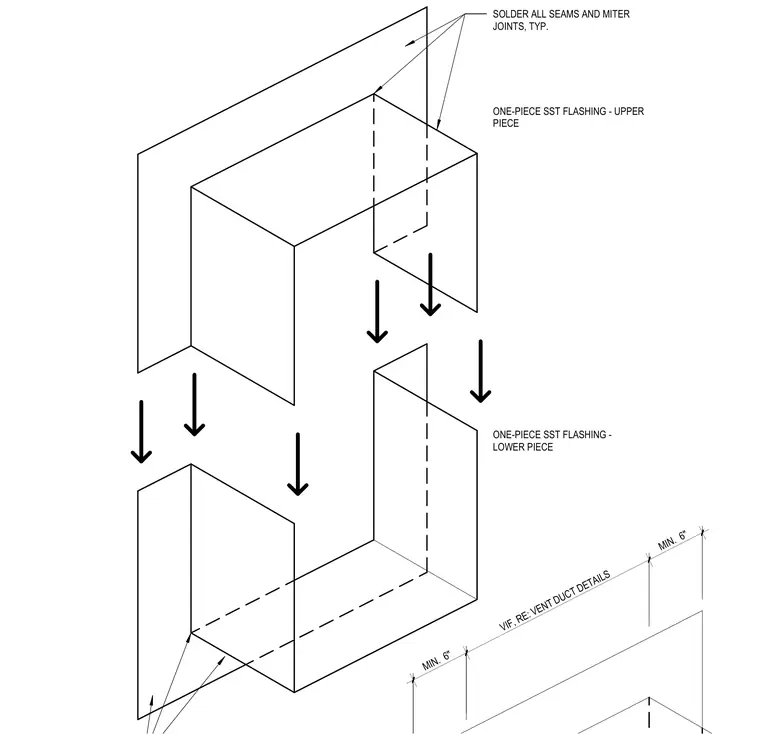

This isometric detail shows a two-piece stainless steel flashing collar assembly consisting of upper and lower one-piece components designed to waterproof a vent duct penetration at a cement plaster wall. All seams and miter joints are soldered typically. Dimensions require a minimum of six inches verify in field as referenced in vent duct details.
MIN. 6" VIF, RE: VENT DUCT DETAILS MIN. 6" ONE-PIECE SST FLASHING - UPPER PIECE ONE-PIECE SST FLASHING - LOWER PIECE SOLDER ALL SEAMS AND MITER JOINTS, TYP.
