Framing connection methods use bent stud webs and steel straps secured with screws. Where gypsum board occurs on one side only, straps are provided on the side without gypsum board, while straps are provided on both sides of the stud above gypsum board. Blocking is incorporated at strap locations with splices provided where required.

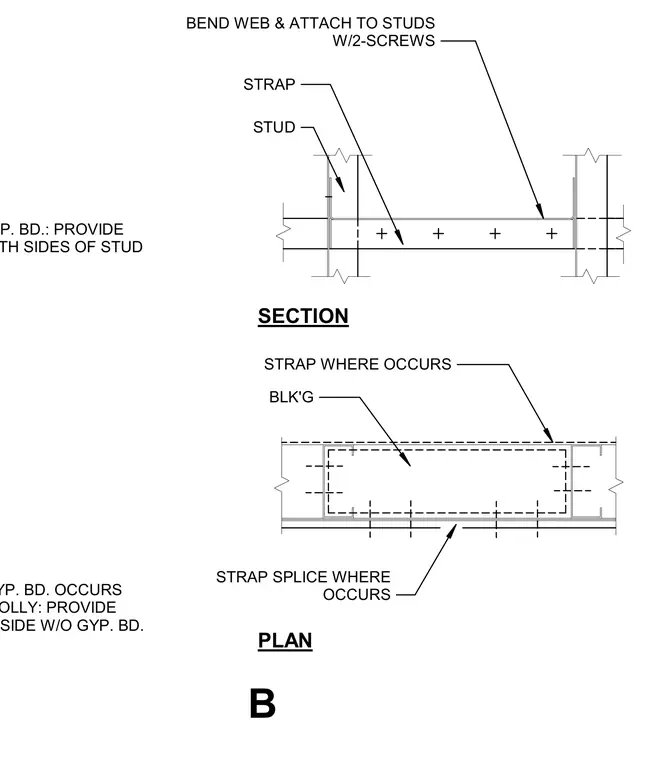

ABOVE GYP. BD.: PROVIDE STRAP BOTH SIDES OF STUD WHERE GYP. BD. OCCURS ONE SIDE OLLY: PROVIDE STRAP AT SIDE W/O GYP. BD. SECTION PLAN B BEND WEB & ATTACH TO STUDS W/2-SCREWS STRAP STUD STRAP WHERE OCCURS BLK'G STRAP SPLICE WHERE OCCURS
