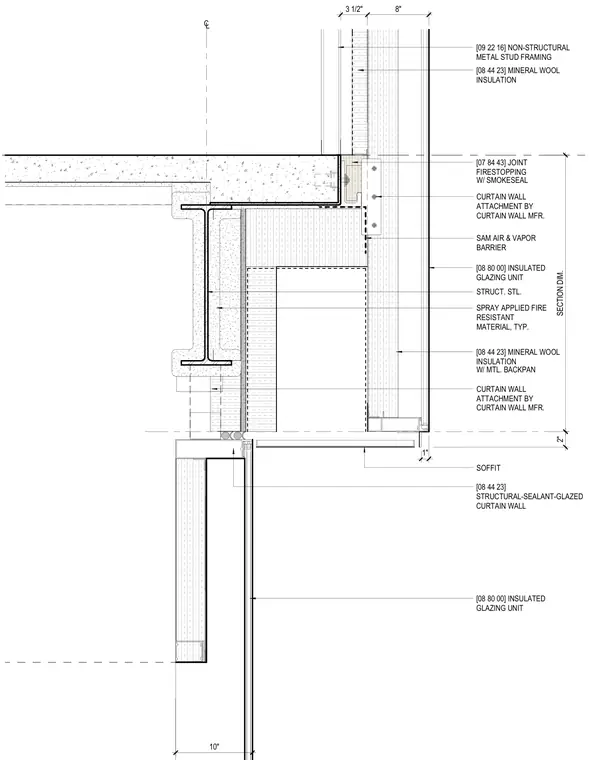

The head of a structural-sealant-glazed curtain wall frames into a concrete floor slab and wide-flange structural steel beam. The steel beam is protected with spray-applied fire-resistant material. Mineral wool insulation and joint firestopping with a smoke seal fill the perimeter gap between the slab edge and the glazing head. A self-adhered air and vapor barrier wraps the slab edge behind a metal backpan. The assembly incorporates non-structural metal stud framing above and insulated glazing units throughout, with curtain wall attachments engineered by the manufacturer.
SECTION DIM. W/ SMOKESEAL SOFFIT 10" CURTAIN WALL ATTACHMENT BY CURTAIN WALL MFR. STRUCT. STL. SPRAY APPLIED FIRE RESISTANT MATERIAL, TYP. 8" 3 1/2" C L 2" SAM AIR & VAPOR BARRIER W/ MTL. BACKPAN [08 80 00] INSULATED GLAZING UNIT [08 80 00] INSULATED GLAZING UNIT [08 44 23] MINERAL WOOL INSULATION [08 44 23] MINERAL WOOL INSULATION [07 84 43] JOINT FIRESTOPPING [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL [09 22 16] NON-STRUCTURAL METAL STUD FRAMING 1" CURTAIN WALL ATTACHMENT BY CURTAIN WALL MFR.
