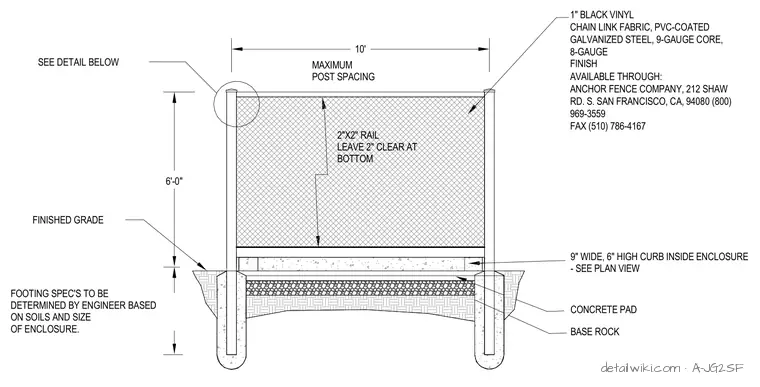

This assembly consists of a six-foot high chain link fence with a one-inch black vinyl, PVC-coated galvanized steel fabric on a nine-gauge core and eight-gauge finish. The fence features a two-inch by two-inch rail with a two-inch clearance at the bottom. The enclosure is supported by posts spaced at a maximum of ten feet on center, set into concrete footings with specifications determined by the engineer based on soil conditions and enclosure size. A nine-inch wide by six-inch high concrete curb is located inside the enclosure, resting on a concrete pad and base rock layer.
