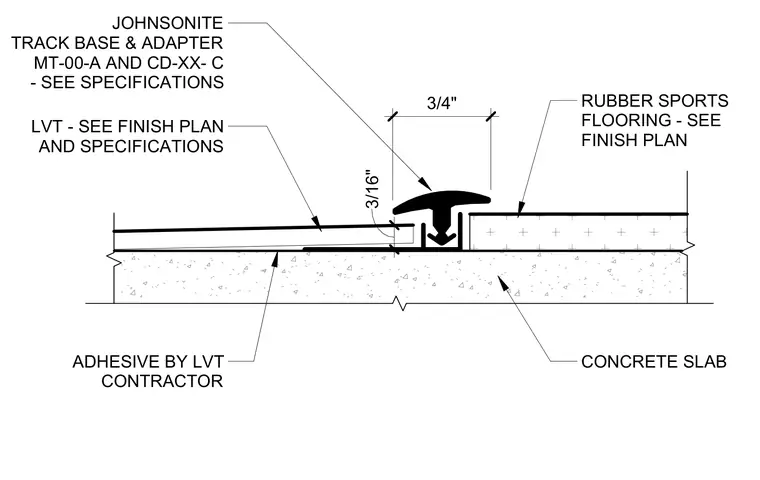

Luxury vinyl tile and rubber sports flooring transition over a concrete slab using a Johnsonite track base and adapter. The luxury vinyl tile is installed with adhesive applied by the Lvt contractor alongside the track base assembly. A three-quarter-inch transition strip profile bridges the two flooring materials set over the three-sixteenth-inch substrate height difference.
RUBBER SPORTS FLOORING - SEE FINISH PLAN CONCRETE SLAB ADHESIVE BY LVT CONTRACTOR JOHNSONITE TRACK BASE & ADAPTER MT-00-A AND CD-XX- C - SEE SPECIFICATIONS LVT - SEE FINISH PLAN AND SPECIFICATIONS 3/4" 3/16"
