Architectural · A-JF939

Ceiling Detail

Units: imperial
Sheet: A-580
Discipline: Architectural

Materials

Metal (misc.)Steel

Elements

Ceilings Doors

Text on the drawing

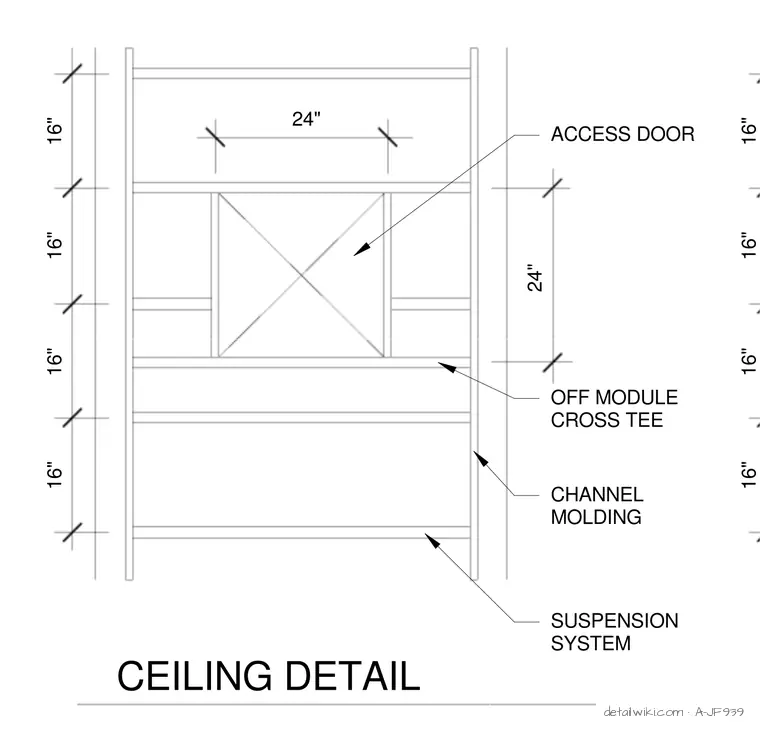

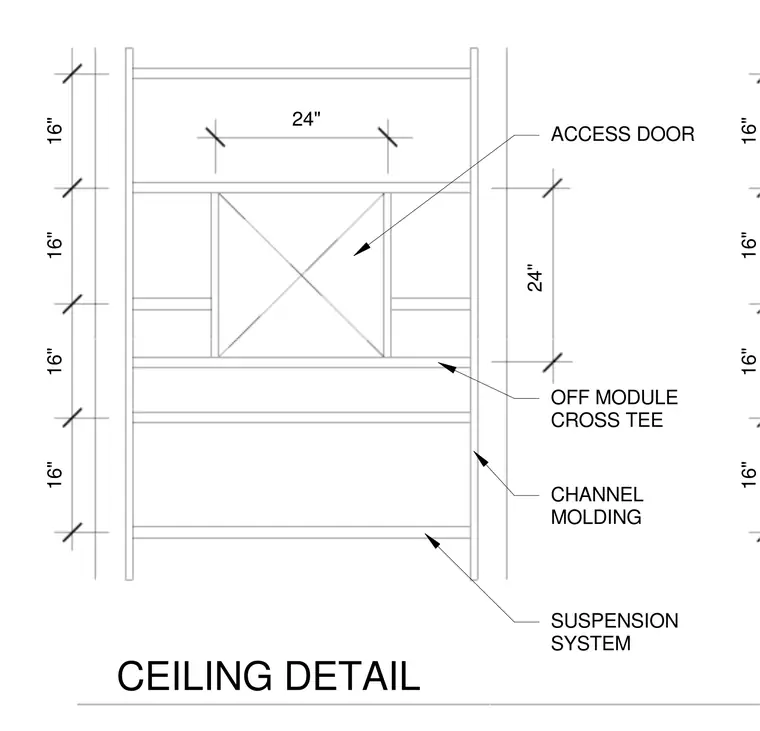

CEILING DETAIL 16" 16" 16" 16" 24" 24" SUSPENSION SYSTEM CHANNEL MOLDING OFF MODULE CROSS TEE ACCESS DOOR 16" 16" 16" 16"
