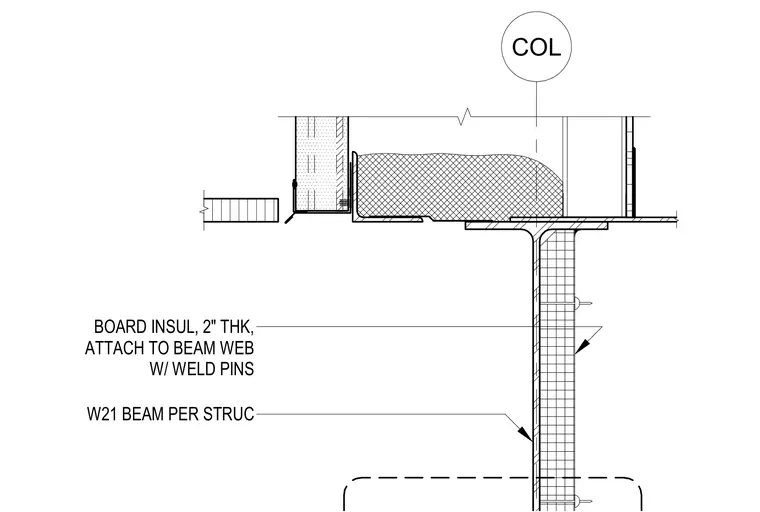

Two-inch thick board insulation is attached to the web of a W21 structural steel beam using weld pins. Flashing is integrated at the intersection with the adjacent wall assembly near the column centerline.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
