A-JF62C — Firefighters Control Panel Layout

Fire Protection · A-JF62C

Firefighters Control Panel Layout

About this detail

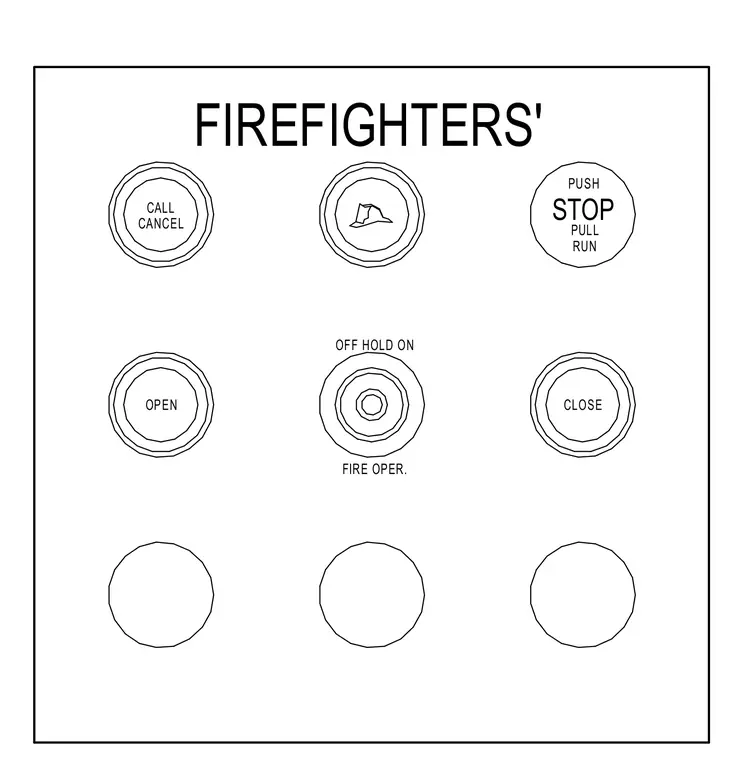

A control panel arrangement features labeled push buttons and toggle switches for emergency responder operations. The layout includes call and cancel buttons, a fire operation switch with off, hold, and on positions, along with open, close, and stop functions. Each control station is outlined within designated circular housings.

PUSH STOP PULL RUN CALL CANCEL OPEN CLOSE OFF HOLD ON FIRE OPER. FIREFIGHTERS'

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
