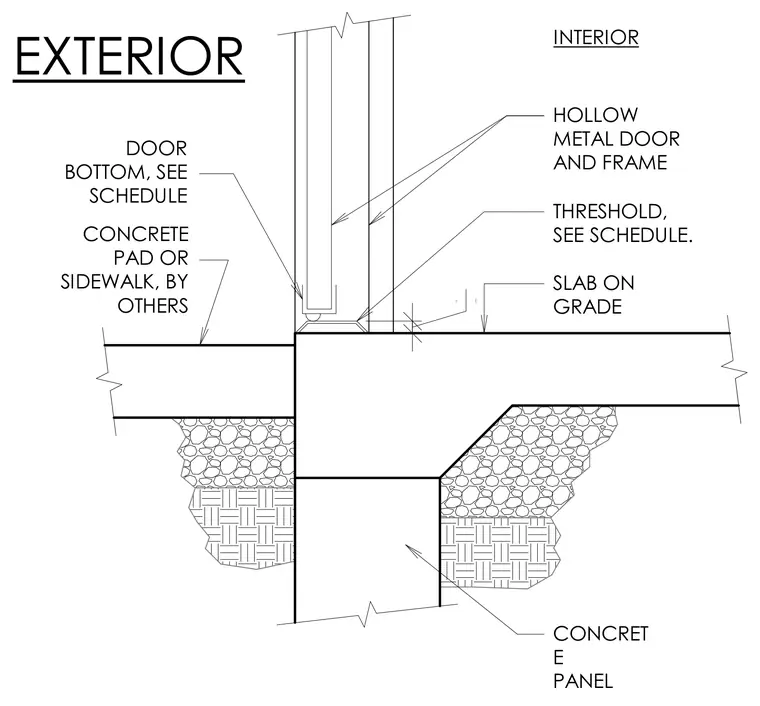

A hollow metal door and frame sits above a threshold and a concrete slab on grade. The exterior concrete pad or sidewalk is provided by others. A door bottom is specified per schedule.
1/2" MAX. INTERIOR EXTERIOR HOLLOW METAL DOOR AND FRAME THRESHOLD, SEE SCHEDULE. SLAB ON GRADE CONCRET E PANEL CONCRETE PAD OR SIDEWALK, BY OTHERS DOOR BOTTOM, SEE SCHEDULE
