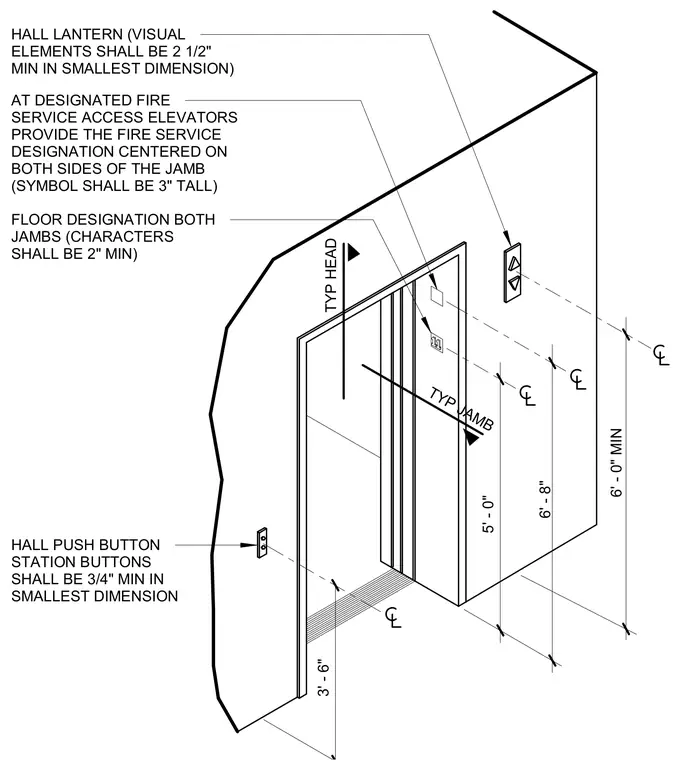

An elevator entrance assembly details the standard vertical clearances and mounting requirements for accessibility fixtures at the door opening. The hall push button station is positioned at a height of three feet six inches above the finished floor to the centerline, with individual buttons measuring at least three quarters of an inch in their smallest dimension. A hall lantern is located above the opening with visual elements measuring a minimum of two and a half inches. Floor designations are marked on both jambs using characters at least two inches tall. Designated fire service access elevators require a three-inch-tall symbol centered on both sides of the jamb at six feet eight inches above the floor.
3' - 6" 5' - 0" 6' - 0" MIN TYP HEAD TYP JAMB HALL PUSH BUTTON STATION BUTTONS SHALL BE 3/4" MIN IN SMALLEST DIMENSION FLOOR DESIGNATION BOTH JAMBS (CHARACTERS SHALL BE 2" MIN) HALL LANTERN (VISUAL ELEMENTS SHALL BE 2 1/2" MIN IN SMALLEST DIMENSION) 6' - 8" AT DESIGNATED FIRE SERVICE ACCESS ELEVATORS PROVIDE THE FIRE SERVICE DESIGNATION CENTERED ON BOTH SIDES OF THE JAMB (SYMBOL SHALL BE 3" TALL)
