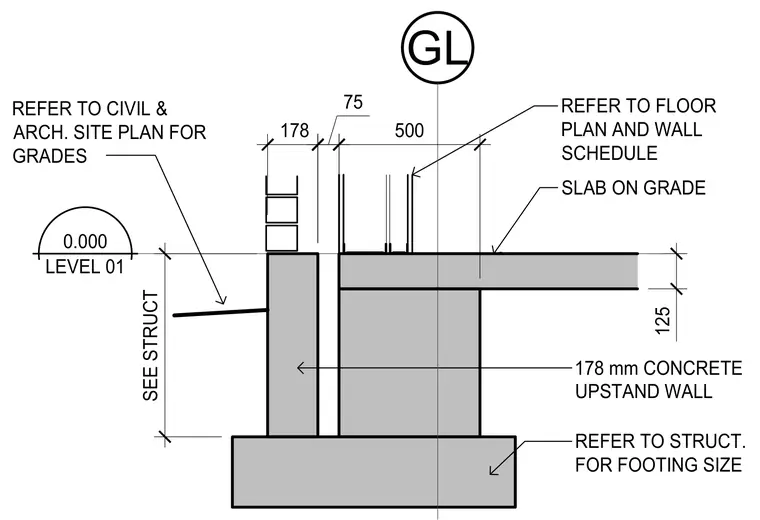

A 125 mm thick concrete slab on grade bears on a concrete foundation system featuring a 178 mm concrete upstand wall. The assembly includes a grid line reference and a Level 01 datum at 0.000, with footing sizes and grades coordinated with structural, civil, and architectural site plans. A 178 mm concrete masonry unit or exterior wall assembly sits on an adjacent footing separated by a 75 mm clearance gap.
0.000 LEVEL 01 GL 75 178 REFER TO STRUCT. FOR FOOTING SIZE SLAB ON GRADE 125 REFER TO CIVIL & ARCH. SITE PLAN FOR GRADES 178 mm CONCRETE UPSTAND WALL REFER TO FLOOR PLAN AND WALL SCHEDULE 500 SEE STRUCT
