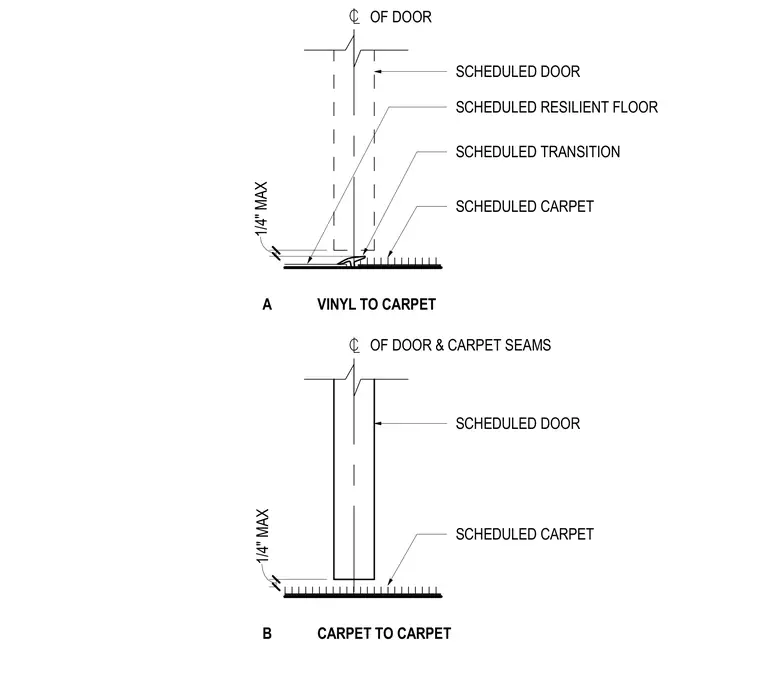

Typical flooring transitions occur at door thresholds centered beneath scheduled doors. The first condition connects resilient flooring to carpet through a scheduled transition strip, maintaining a maximum one-quarter-inch clearance. The second condition connects direct carpet-to-carpet aligned with the centerline of the door and carpet seams.
SCHEDULED DOOR SCHEDULED RESILIENT FLOOR SCHEDULED TRANSITION SCHEDULED CARPET 1/4" MAX SCHEDULED DOOR OF DOOR OF DOOR & CARPET SEAMS 1/4" MAX A VINYL TO CARPET B CARPET TO CARPET SCHEDULED CARPET
