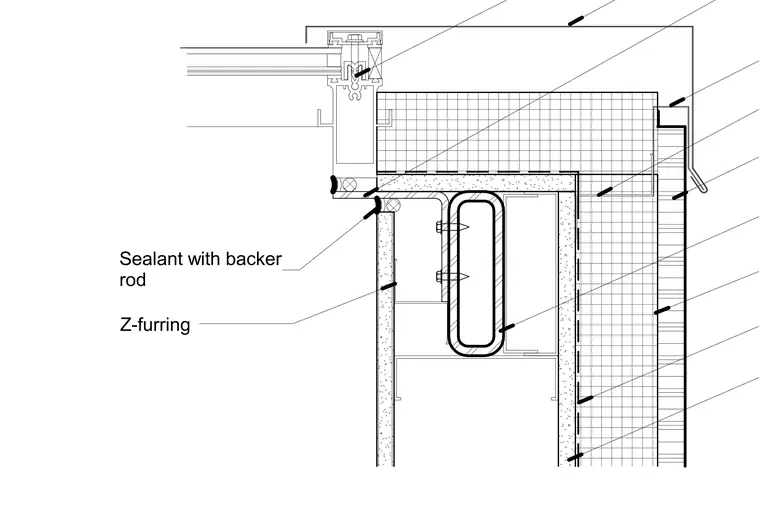

This plan detail shows the framing and flashing transition at the rake of a monitor skylight curb. The skylight frame is seated against insulated wall construction with continuous Z-furring members. Joints are sealed with flexible sealant backed by cylindrical backer rod material to maintain weather-tightness.
