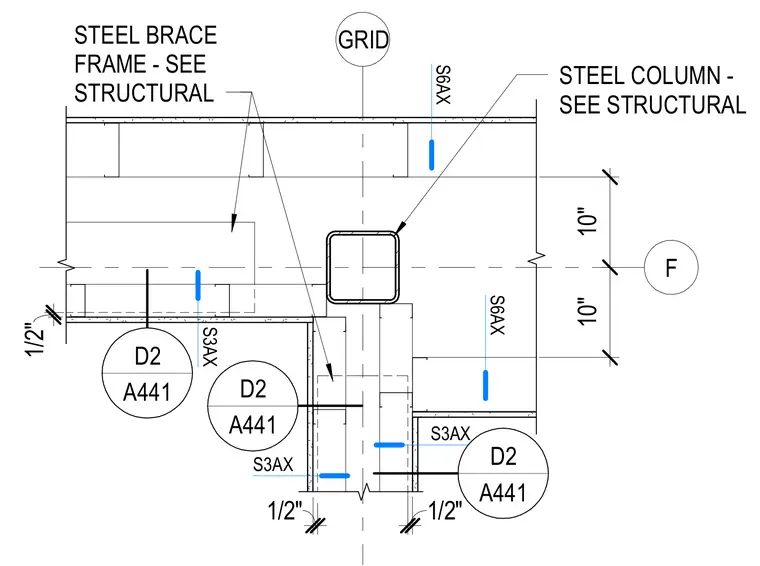

A square steel column aligns with Grid F and connects to intersecting steel brace frames. The assembly indicates specific dimensions for framing elements with clear offsets. Callouts direct coordination with structural engineering drawings.
S6AX 10" 10" STEEL COLUMN - SEE STRUCTURAL S3AX S3AX S3AX GRID F S6AX 1/2" 1/2" 1/2" STEEL BRACE FRAME - SEE STRUCTURAL D2 A441 ___________________________ D2 A441 ___________________________ D2 A441 ___________________________
