Architectural · A-JD7Q4

Guardrail to Wall and Stair

Materials

Concrete Steel

Elements

Walls Stairs Ramps Railings / Guards Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Welded Connection Embed Plate

About this detail

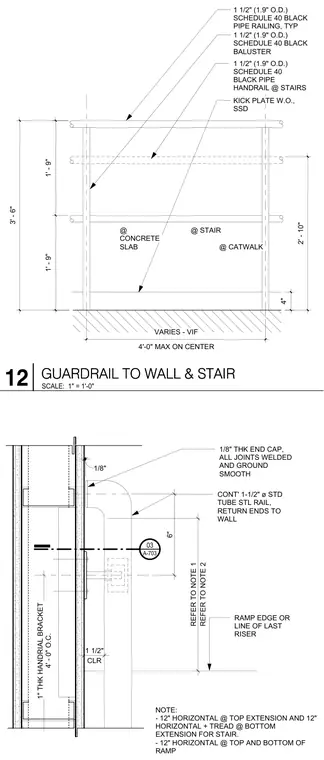

A steel guardrail and handrail system is composed of one-and-a-half-inch nominal diameter schedule forty black pipe rails and balusters spaced at four feet maximum on center. At the wall connection, a one-inch-thick handrail bracket supports the continuous one-and-a-half-inch diameter standard steel tube rail with return ends, maintaining a one-and-a-half-inch clearance from the wall surface. All joints are finished with a one-eighth-inch continuous weld ground smooth, capped with a one-eighth-inch thick end cap. Extensions include a twelve-inch horizontal top extension and a twelve-inch horizontal plus tread extension at the bottom for stairs, alongside a twelve-inch horizontal extension at the top and bottom of ramps.
