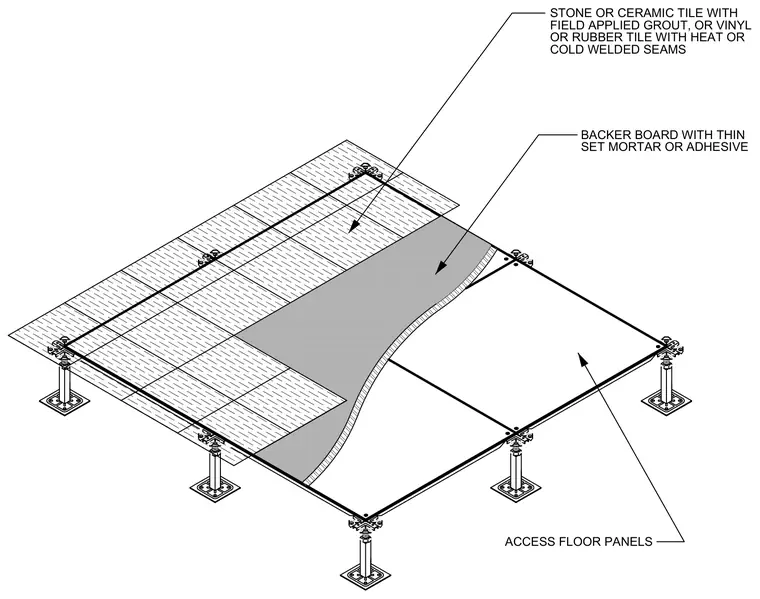

Stone or ceramic tile with field-applied grout, or alternatively vinyl or rubber tile with heat or cold welded seams, finishes the top surface of the assembly. A backer board adheres directly to the substrate using thin-set mortar or adhesive. Access floor panels form the underlying structural deck, supported by adjustable pedestals at each corner junction.
STONE OR CERAMIC TILE WITH FIELD APPLIED GROUT, OR VINYL OR RUBBER TILE WITH HEAT OR COLD WELDED SEAMS BACKER BOARD WITH THIN SET MORTAR OR ADHESIVE ACCESS FLOOR PANELS
