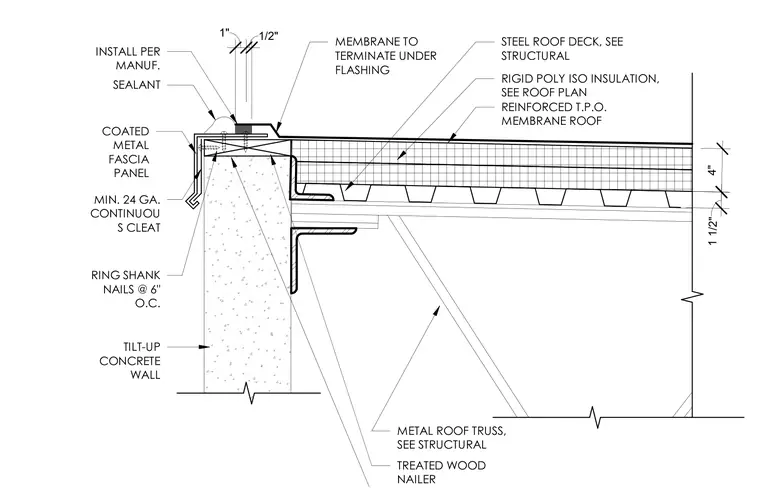

A reinforced thermoplastic polyolefin membrane roof transitions over rigid polyiso insulation supported by a steel roof deck and metal roof truss. A treated wood nailer is anchored to the top of the tilt-up concrete wall, receiving the roof membrane which terminates under the metal flashing. A coated metal fascia panel is secured over a minimum twenty-four gauge continuous cleat using one-and-one-half-inch ring shank nails at six inches on center. Sealant is applied at the top edge of the fascia assembly to complete the weather seal.
STEEL ROOF DECK, SEE STRUCTURAL RIGID POLY ISO INSULATION, SEE ROOF PLAN REINFORCED T.P.O. MEMBRANE ROOF INSTALL PER MANUF. 1 1/2" 4" SEALANT COATED METAL FASCIA PANEL MIN. 24 GA. CONTINUOU S CLEAT TILT-UP CONCRETE WALL METAL ROOF TRUSS, SEE STRUCTURAL TREATED WOOD NAILER 1" 1/2" RING SHANK NAILS @ 6" O.C. MEMBRANE TO TERMINATE UNDER FLASHING
