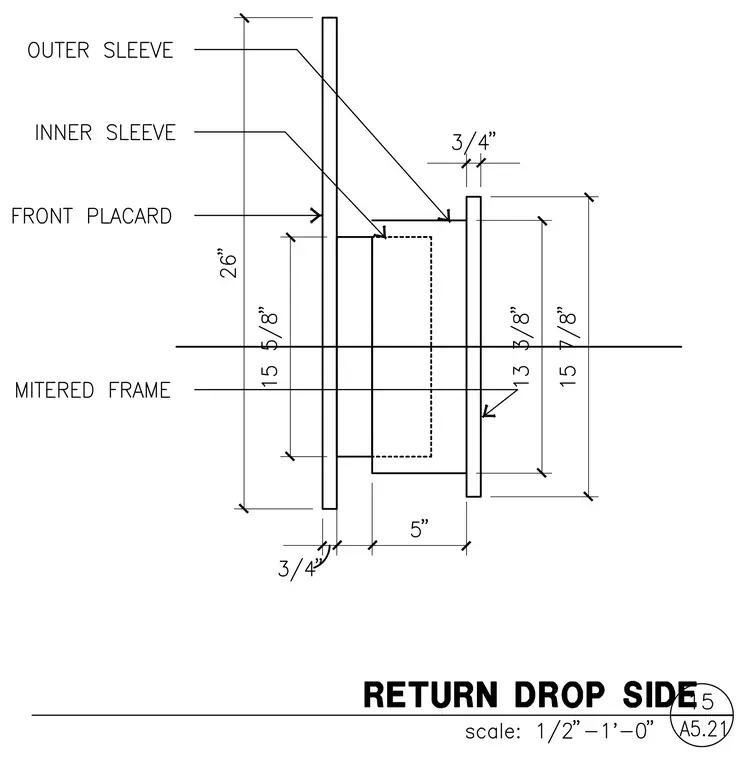

The assembly consists of an outer sleeve, an inner sleeve, a front placard, and a mitered frame with specific dimensional callouts. The overall height measures 26 inches with an offset of 3/4 inch at the base and top. The inner sleeve projects 5 inches and aligns with a 13 3/8 inch dimension across the frame. The front placard centers within the 15 5/8 inch span.
