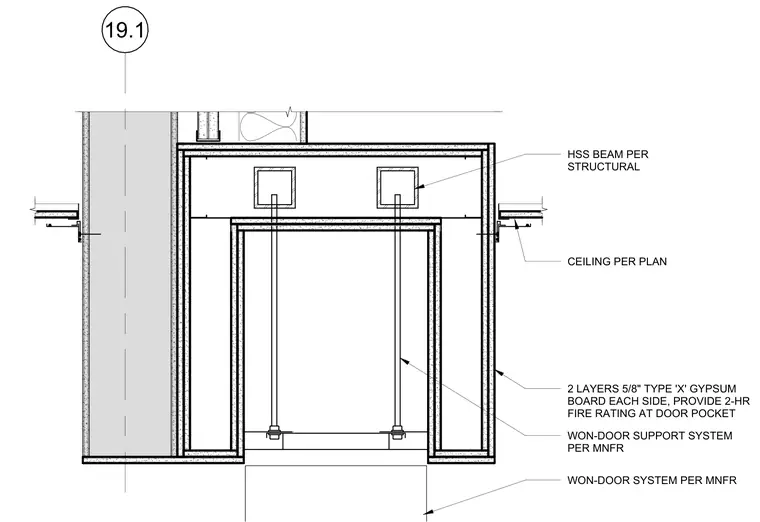

Head condition for a retractable door pocket framing assembly suspended from hollow structural section beams per structural plans. The enclosure consists of two layers of five-eighths-inch Type X gypsum board on each side to provide a two-hour fire rating at the door pocket. The won-door support system and door assembly are installed per the manufacturer's specifications. Ceilings abut the pocket assembly as specified on the floor plan.
HSS BEAM PER STRUCTURAL WON-DOOR SYSTEM PER MNFR WON-DOOR SUPPORT SYSTEM PER MNFR 2 LAYERS 5/8" TYPE 'X' GYPSUM BOARD EACH SIDE, PROVIDE 2-HR FIRE RATING AT DOOR POCKET CEILING PER PLAN 19.1
