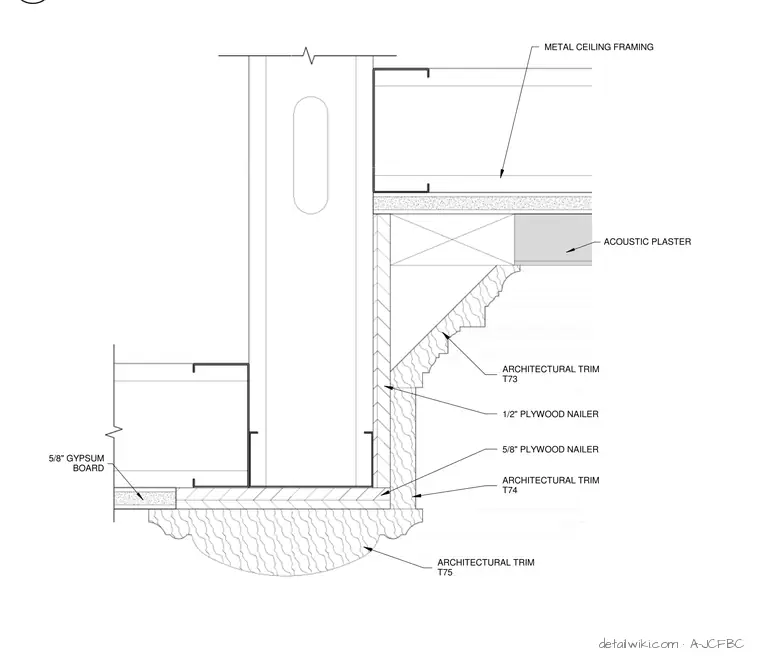

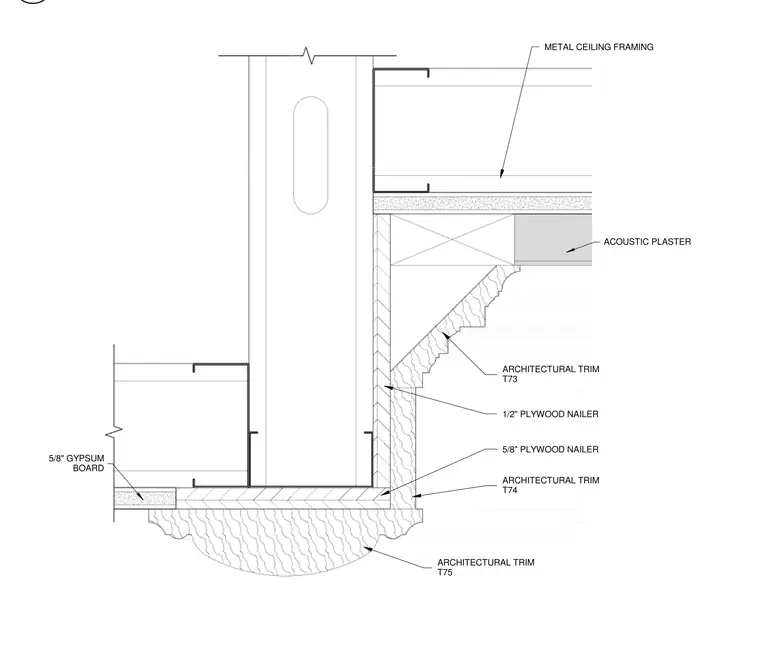

A-JCFBC — Instruction Ceiling Step Detail

Architectural · A-JCFBC

Instruction Ceiling Step Detail

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-584
Discipline: Architectural

Materials

Cold-formed Steel EIFS / Plaster / Stucco Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Ceilings Millwork / Casework

Text on the drawing

ACOUSTIC PLASTER 1/2" PLYWOOD NAILER 5/8" PLYWOOD NAILER ARCHITECTURAL TRIM T75 ARCHITECTURAL TRIM T74 ARCHITECTURAL TRIM T73 METAL CEILING FRAMING 5/8" GYPSUM BOARD
