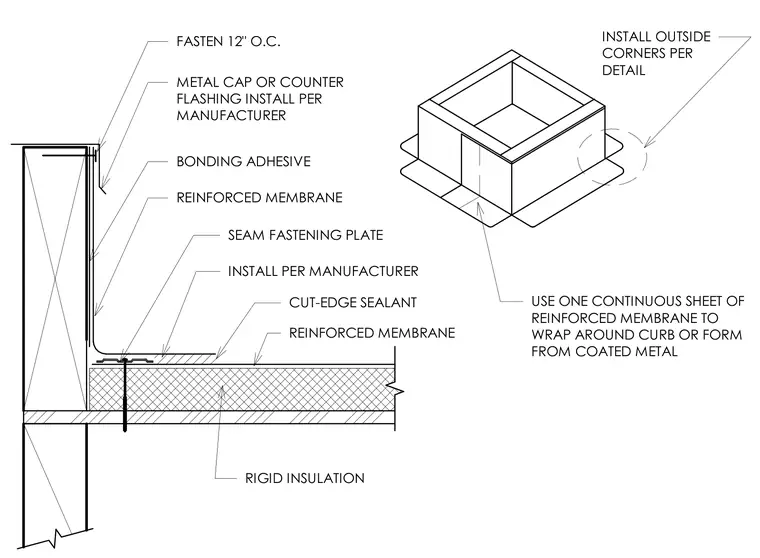

Rigid insulation is overlaid with a continuous sheet of reinforced membrane wrapping the roof curb or formed from coated metal. A bonding adhesive secures the membrane to the vertical curb surface. Seam fastening plates secure the base flange at twelve inches on center through the insulation and substrate with mechanical fasteners, finished with a cut-edge sealant. A metal cap or counter-flashing is installed at the top of the curb per the manufacturer's specifications and fastened twelve inches on center. Outside corners require special detailing per manufacturer instructions.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
