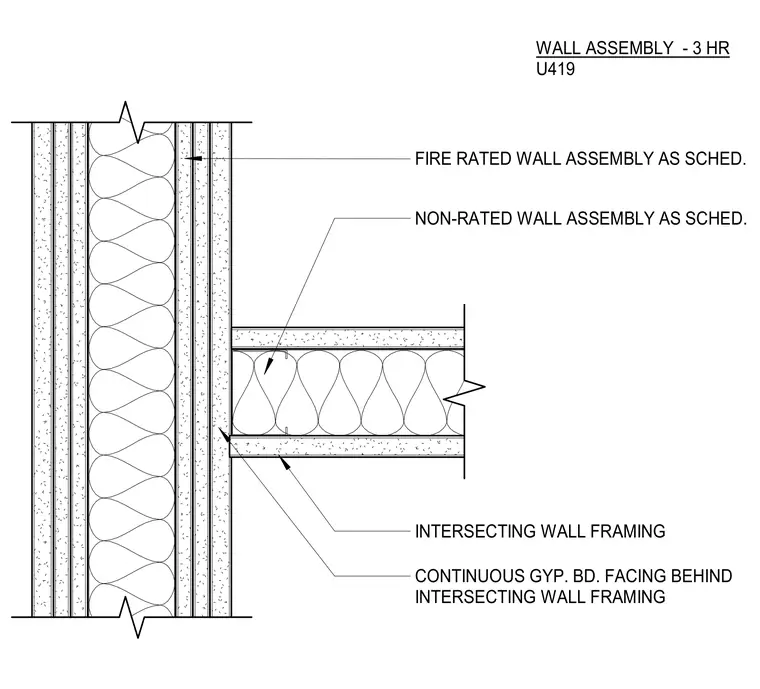

An intersecting non-rated wall framing member abuts a continuous fire-rated wall assembly designated as UL U419. Continuous gypsum board facing is installed behind the intersecting wall framing to maintain the required fire separation. The fire-rated wall assembly and non-rated wall assembly are constructed per schedule. Intersecting wall framing connects directly to the continuous board facing and stud framing of the primary partition.
CONTINUOUS GYP. BD. FACING BEHIND INTERSECTING WALL FRAMING FIRE RATED WALL ASSEMBLY AS SCHED. NON-RATED WALL ASSEMBLY AS SCHED. INTERSECTING WALL FRAMING WALL ASSEMBLY - 3 HR U419
