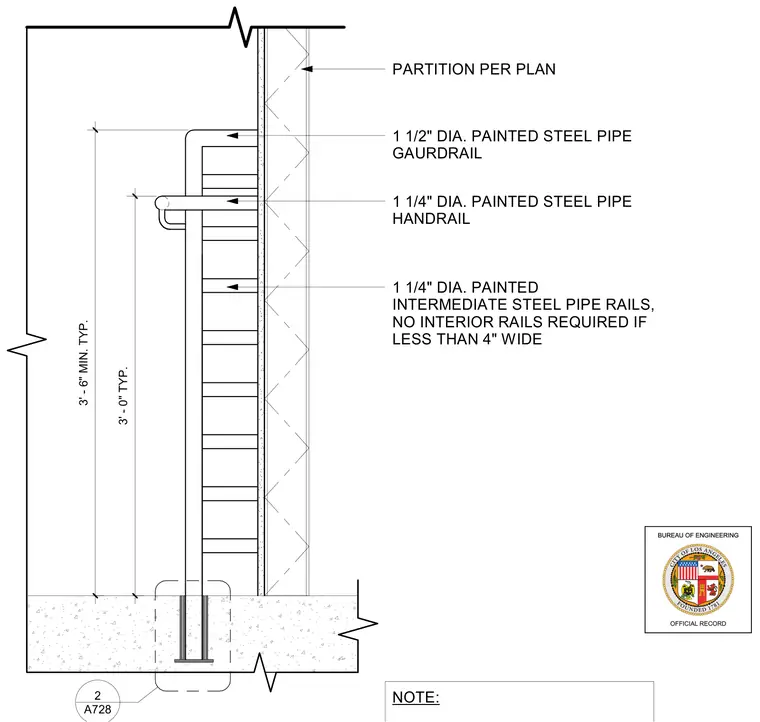

A painted steel pipe guardrail and handrail assembly terminates at a wall partition. The assembly features a 1 1/2-inch diameter painted steel pipe guardrail set at a typical height of 3 feet 6 inches minimum, alongside a 1 1/4-inch diameter painted steel pipe handrail set at a typical height of 3 feet 0 inches. One and one-quarter inch diameter painted intermediate steel pipe rails fill the guardrail frame, with a note specifying that no interior rails are required if gaps are less than 4 inches wide. The posts anchor into the floor assembly with a base plate and sleeve connection, while the upright members attach laterally to a partition constructed per plan.
A728 2 1 1/2" DIA. PAINTED STEEL PIPE GAURDRAIL 1 1/4" DIA. PAINTED STEEL PIPE HANDRAIL 1 1/4" DIA. PAINTED INTERMEDIATE STEEL PIPE RAILS, NO INTERIOR RAILS REQUIRED IF LESS THAN 4" WIDE 3' - 0" TYP. 3' - 6" MIN. TYP. NOTE: PARTITION PER PLAN BUREAU OF ENGINEERING OFFICIAL RECORD
