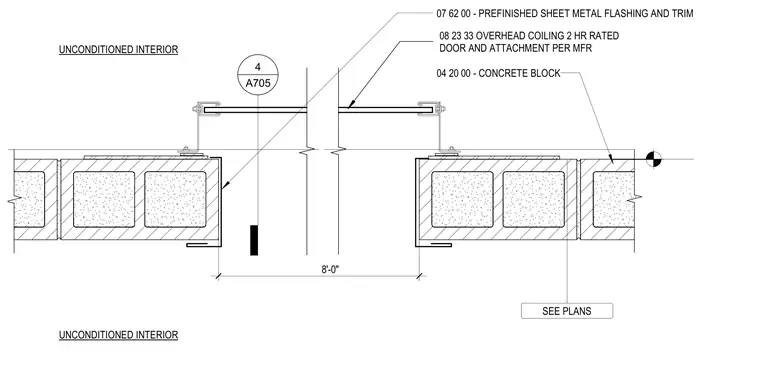

An eight-foot-wide opening in a concrete block wall houses a 2-hour rated overhead coiling door with attachment per manufacturer specifications. Prefinished sheet metal flashing and trim are installed at the jamb condition. Both sides of the assembly face unconditioned interior spaces. Wall layout and dimensions are sized per plans.
8'-0" 04 20 00 - CONCRETE BLOCK 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM SEE PLANS 4 A705 UNCONDITIONED INTERIOR UNCONDITIONED INTERIOR 08 23 33 OVERHEAD COILING 2 HR RATED DOOR AND ATTACHMENT PER MFR
